You are standing in the hardware store, staring at a massive wall of air filtration options. You grab the cheapest standard size available and head to the checkout. Stop right there. As an HVAC professional, I see this exact scenario play out daily—and it is one of the fastest ways to destroy a perfectly good blower motor.
Many homeowners assume all filtration media performs exactly the same. They don't. Using the wrong thickness, or pairing a highly dense material with an incompatible blower, creates severe mechanical strain. In this guide, we are stripping away the marketing fluff. We will look at the hard mechanical facts behind your heating and cooling setup, detailing exactly when a standard 1-inch frame works, when it chokes your system, and how to balance pure indoor air with healthy equipment.
Before you modify your indoor environment, you need to understand the physical dimensions of your current hardware. Manufacturing terminology often misleads consumers, especially regarding actual measurements and woven media.
Look at the numbers printed boldly on a cardboard frame, like 16x20x1. This is the "nominal size"—a rounded number used to make retail shelving uniform. Grab a tape measure, and you will find the "actual size" is smaller. A typical one-inch frame actually measures between 0.75 and 0.88 inches in depth.
This undersizing is intentional. It allows the cardboard to slide into the return track without jamming. However, a sloppy fit is disastrous. If the gap between the frame and the metal track is too wide, air takes the path of least resistance. Unfiltered debris bypasses the media entirely and cakes directly onto your wet evaporator coils. Always measure your specific slot before buying.
Materials matter just as much as dimensions. The cheapest option is the spun fiberglass web. Technicians jokingly call these "rock catchers." They stop hair, large lint, and insects from hitting the fan blades, but they do absolutely nothing for your lungs. They carry a negligible MERV rating.
In contrast, a modern thin pleated filter uses synthetic cotton or polyester blends folded into tight V-shapes. This geometry is crucial. Creasing the fabric packs significantly more surface area into a confined space. This expanded area captures microscopic particles like pollen and dander without immediately turning into a solid wall that kills circulation.
Despite the push for massive media cabinets, the standard narrow size remains the most common configuration. Under specific, controlled conditions, this thickness is mechanically optimal.
Most older homes and standard builder-grade units were engineered specifically for a narrow slot. The factory calibrated the internal blower motor to pull a specific volume of air against a specific resistance. If your ductwork was designed exclusively for this narrow profile, sticking to a standard MERV 8 rating ensures the motor operates safely within its intended static pressure limits.
Historically, the primary job of this component was never to clean the air you breathe. Its job is to protect the internal gears of the furnace and AC. If your home has no pets, no severe asthma sufferers, and sits in a relatively clean climate, a basic option works perfectly. It traps household lint and prevents coil fouling.
We are currently seeing a massive shift in the air quality industry. Driven by increasing seasonal wildfires, heavy agricultural dust, and rising urban pollution, consumers are desperately seeking commercial-grade indoor air quality (IAQ). Recent market analyses indicate a sharp rise in demand for HEPA and high-MERV solutions in residential and light-commercial spaces.
Here is the problem: standard residential ductwork, designed decades ago, cannot handle the severe static pressure demanded by modern heavy-duty media. You cannot simply slap a hospital-grade 1 inch air filter into a 1990s furnace and expect it to work. The industry is responding by moving away from passive in-duct filtration toward active, specialized systems. We are seeing a crossover of industrial tech—like intelligent overpressure systems—being adapted to solve this exact bottleneck, providing extreme purification without relying on the primary HVAC blower.
While capable under baseline conditions, a slim profile fails rapidly when exposed to heavy pollutant loads or when ultra-high-efficiency purification is required.
A narrow profile fundamentally fails when tasked with heavy-duty scrubbing. Homes with multiple shedding pets generate continuous waves of dander. Properties near construction zones or in wildfire-prone areas require a level of defense that a slim frame cannot sustain. Under these harsh conditions, the media will either fail to capture the micro-particles or blind over so fast that it suffocates the equipment.
The physical reality of a slim profile is a severe lack of "dust-holding capacity." There is simply less physical fabric available. Once those microscopic pores fill up, the unit becomes a blockade. If your maintenance routine involves checking the furnace only twice a year, a narrow setup will lead directly to overheating components and expensive service calls.
The most expensive mistake consumers make is chasing peak purification by buying the highest MERV rating available in a narrow size. This creates a severe mechanical conflict.
In fluid dynamics, we deal with "pressure drop." To achieve a MERV 13 or 14 rating, manufacturers must weave the synthetic fibers incredibly tight to catch micro-contaminants. When you squeeze this dense, highly restrictive fabric into a narrow 1-inch space, you build a physical wall inside your ductwork.
Your blower motor now has to pull massive amps to drag oxygen through that tight weave. The air that makes it through might be pristine, but the total volume drops drastically. This compromises your system's ability to actually heat or cool the house.
When a dense barrier chokes your HVAC airflow, the machinery screams for help. You will hear high-pitched whistling as negative pressure sucks air through tiny gaps in the metal casing. In the summer, the evaporator coil will freeze into a block of ice because there isn't enough warm air moving across it. In winter, the furnace heat exchanger will overheat, tripping the high-limit safety switch and causing short-cycling.
Thickness is not just about size; it is a matter of geometry and airflow dynamics. Let's break down how different setups actually perform in the field.
| System Type | Best Use Case | Pressure Drop Risk | Replacement Cycle |
|---|---|---|---|
| 1-Inch Fiberglass | Basic equipment protection only | Very Low | 30 Days |
| 1-Inch Pleated (MERV 8) | Standard homes, minor allergies | Moderate (High if neglected) | 1 to 3 Months |
| 4-Inch Deep Media (MERV 11+) | Homes with pets, asthma, high dust | Low (Massive surface area) | 6 to 12 Months |
| Intelligent Overpressure Unit | Extreme pollution, industrial dust, VOCs | None (Independent blower system) | Varies by extreme load |

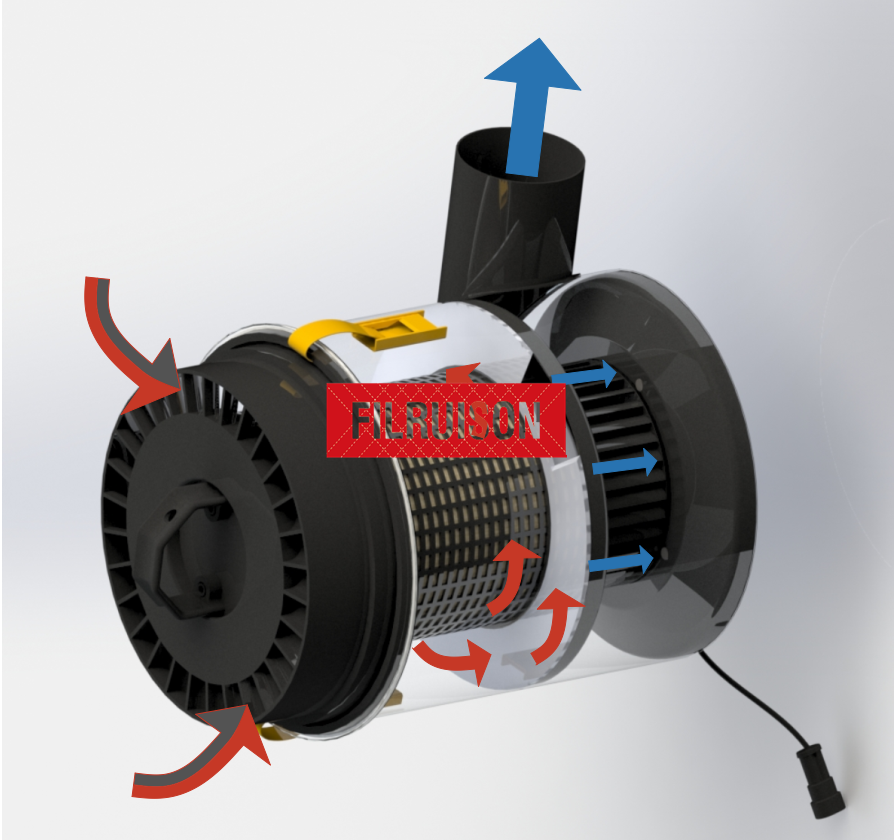

Furthermore, if you are dealing with severe external pollutants, relying on a passive duct filter is a losing battle. This is where specialized equipment like an Intelligent Cabin Overpressure Air Filtration Unit changes the game. Instead of choking your AC, these units use an independent high-efficiency blower to push HEPA-filtered air into the space. This creates positive pressure, physically blocking dirty outdoor air from seeping through window cracks and doors. It delivers commercial-grade IAQ without touching your HVAC static pressure.
Stop guessing in the hardware aisle. Use this strict technician checklist to select the right hardware for your specific setup:
A strict maintenance schedule is the lifeblood of a narrow frame system. Unlike deep 4-inch media cabinets that you can ignore for six months, a slim profile requires active monitoring.
The baseline rule is to physically inspect the unit every 30 days and replace it every 1 to 3 months. However, operational variables accelerate this. If you set your thermostat fan to "ON" instead of "AUTO," air circulates 24/7, cutting the lifespan in half.
Not sure if it is dead? Use the flashlight test. Pull the dirty frame out and hold it up to a bright bare bulb. If you cannot clearly see light shining through the pores, the fabric is completely blinded over. It is time to immediately insert a replacement filter to restore your system's breathing.
A standard 1-inch frame is a capable tool for basic residential heating and cooling, provided you stick to a reasonable MERV rating and change it religiously. It is affordable and protects your internal machinery from catastrophic fouling.
However, when faced with severe allergies, multiple pets, or heavy environmental pollution, a thin frame becomes a mechanical liability. Pushing too much density into too little space destroys efficiency and damages equipment. By understanding the physics of your ductwork, you can step away from cheap fixes and invest in the right thickness—or the right active technology—to keep your air pristine and your equipment running for decades.
Ready to fix your air quality the right way? Stop choking your HVAC system with dense, incompatible media. If you are dealing with heavy dust, severe allergens, or industrial-level pollutants, standard residential options will fail you. Explore advanced, zero-pressure-drop solutions like the Intelligent Cabin Overpressure Air Filtration Unit and specialized heavy-duty systems at Sykingtech to protect your environment and your machinery today.
You physically can, but you absolutely shouldn't. The resulting gap causes the frame to rattle wildly when the motor kicks on. More importantly, air takes the path of least resistance. Dust and debris will completely bypass the edges, fouling your blower wheel and evaporator coil. Always match the exact dimensions of your slot.
No. This is a massive misconception. High MERV ratings (13 and above) on a narrow frame create severe mechanical resistance. This chokes the volume of air circulating through your home, forcing your equipment to overwork. This directly leads to frozen AC coils and overheated furnaces. Stick to MERV 8 through 11 for standard narrow slots.
Practically speaking, no. To capture the microscopic PM2.5 particles found in wildfire smoke, you need MERV 13 or HEPA media. Putting that dense of a weave into a 1-inch frame will choke a standard residential blower. For smoke and heavy pollution, you must upgrade to a deep 4-inch media cabinet or use an independent overpressure filtration system.
Yes, it is the number one cause of frozen evaporator coils. An air conditioner doesn't just create cold air; it removes heat from the house. If a clogged barrier prevents warm return air from blowing over the indoor coil, the refrigerant drops below freezing. The condensation on the coil turns to solid ice, eventually shutting down the entire system.
Generally, no. Washable variants rely on static electricity and typically carry much lower MERV ratings, meaning fine dust blows right through them. Furthermore, if you reinstall them even slightly damp, they become a breeding ground for mold directly inside your ductwork. Disposable synthetic pleated options are far more hygienic and efficient.
It fills up rapidly because a slim profile has very little surface area compared to thicker alternatives. Active pets, a dusty climate, or leaving your HVAC fan turned to "ON" continuously will easily max out a narrow frame's dust-holding capacity in under 30 days. Regular visual inspections are mandatory.
