Picture this. You just returned from the local hardware store, confident you grabbed the correct replacement filter for your unit. You slide the new cardboard frame into the intake rack, only to realize it is entirely too loose. Or worse, it requires bending and crushing just to force the access door shut. I see this in the field constantly. This frustrating scenario is rarely a user error. Instead, it stems from a widespread, often misleading industry practice regarding how filtration products are labeled and manufactured.
The root of this sizing confusion lies in the significant gap between the "nominal" size printed on the retail packaging and the literal tape-measure dimensions of the physical product. For highly specific system requirements—such as a 16.375x21.5x1 filter—understanding this dimensional discrepancy is absolutely critical. When a frame is even a fraction of an inch off, it compromises the structural integrity of the seal. Consequently, unfiltered air bypasses the media entirely, circulating particulate matter throughout your living space and internal machinery.
By examining the mechanical necessity of a perfect fit from an engineering perspective, this guide will demystify sizing standards. You will learn why exact measurements are non-negotiable for long-term equipment health. Furthermore, we will walk through a step-by-step methodology to source the precise components required to maintain optimal indoor air quality.
Understanding the terminology used by manufacturers is the foundational step in resolving fitment issues. The filtration industry utilizes a dual-sizing system to categorize and distribute products, which frequently leaves consumers frustrated. Recognizing the difference between these two sets of numbers prevents purchasing errors and guarantees mechanical compatibility.
The nominal size is the shorthand measurement prominently displayed on the outer frame. For example, a retail label might read "16x22x1" in bold lettering. This standardized number is designed strictly for consumer convenience, allowing shoppers to quickly browse store shelves. However, it functions similarly to standard lumber sizing; a "two-by-four" piece of wood does not actually measure two inches by four inches. In the HVAC world, the nominal size is simply a rounded figure that simplifies mass inventory management.
In contrast, the actual size represents the literal, physical dimensions of the product when measured with a calibrated tool. This measurement is calculated down to the precise fraction of an inch, such as 16.375" x 21.5" x 1". The actual size is the most critical data point for maintenance. It dictates whether the frame will create an adequate seal within the return vent. Without matching the actual size to the physical housing, the barrier simply cannot perform its intended mechanical function.
The discrepancy between these two sizes is driven by a widespread manufacturing practice known as "undercutting." Most mass-produced standard filters are intentionally undercut by 1/8 to 1/2 inch in both length and width. Manufacturers implement this tolerance gap so that filters can easily slide into various return grilles without jamming. While undercutting accommodates a wide range of older residential systems, it creates significant complications for modern units that demand exact tolerances.
| Nominal Size (Retail Label) | Typical Actual Size (Inches) | Potential Variance Gap |
|---|---|---|
| 16 x 22 x 1 | 15.50" x 21.50" x 0.75" | 0.50" to 0.75" |
| 20 x 20 x 1 | 19.50" x 19.50" x 0.75" | 0.50" to 0.75" |
| Custom Sizing | 16.375" x 21.50" x 1.00" | Exact Fit (0.00" Variance) |
The physical fit of a filter is not merely a matter of installation convenience. As engineers, we view it as a fundamental component of mechanical preservation and environmental control. Deviating from the required dimensions compromises the entire purification process.
Fluid dynamics dictate that pressurized air will consistently take the path of least resistance. In an active system, the blower motor generates significant negative pressure. If a frame is even slightly smaller than its housing, microscopic gaps form around the perimeter. Instead of forcing its way through the dense media, the system's suction pulls air directly through these gaps. As a result, unfiltered air carrying dust, pet dander, and pollen slips entirely around the barrier, leading to a rapid decline in indoor air quality.
The consequences of air bypass extend far beyond dusty shelves. When unfiltered air enters the ductwork, particulate matter accumulates directly on sensitive internal components. A layer of dust as thin as a few millimeters acts as an insulator on the evaporator coil, preventing it from properly absorbing heat. This often leads to the condensation freezing, completely halting the cooling process and placing severe strain on the compressor. By utilizing a perfectly fitted HVAC replacement component, you establish a primary defense mechanism against catastrophic failures, potentially saving thousands of dollars in emergency repairs.
A precisely fitted frame is also a vital factor in maintaining energy efficiency. When debris bypasses an ill-fitting frame and clogs internal mechanisms, the blower motor must increase its rotational speed to compensate for the pressure drop. This continuous overexertion forces the unit to run for longer cycles to achieve the desired thermostat temperature. Naturally, this increased mechanical workload draws significantly more electrical power. Maintaining a perfect seal allows the system to operate at peak efficiency.
Over the past few years, the heating, cooling, and industrial ventilation sectors have witnessed a massive paradigm shift regarding Indoor Air Quality (IAQ). Driven by heightened environmental awareness—particularly concerning wildfire smoke and airborne pathogens—modern systems are being engineered with incredibly tight tolerances.
Older systems with standard PSC motors could handle the sloppy fit of deeply undercut nominal filters. However, today's high-efficiency variable-speed ECM blowers demand exact static pressure to function correctly. Market data shows a sharp increase in demand for fractional-sized filters (like the 16.375x21.5x1) because property owners are realizing that the era of "close enough" retail sizing is rapidly ending. To support advanced purification technologies, precision fitment down to the fraction of an inch is no longer an optional luxury; it is a strict mechanical requirement.
To eliminate the risks associated with improper sizing, a systematic and objective approach to measurement is required. Following a standardized protocol ensures you obtain the correct data needed to source the appropriate product.
In the filtration sector, dimensions are universally communicated in a specific sequence: Length (L) x Width (W) x Depth (D). It is important to note that the length and width are interchangeable. A 16.375 x 21.5 frame is functionally identical to a 21.5 x 16.375 frame; you simply rotate it to fit the housing. However, the depth—or thickness—is always listed last and is crucial for ensuring the access door closes properly without crushing the media.
If your current setup fits perfectly without any gaps, warping, or whistling sounds, you can use it as an accurate template. First, safely power down the system at the thermostat. Remove the existing frame carefully to avoid knocking dust into the duct. Using a rigid steel tape measure (avoid soft sewing tapes as they stretch), measure the length and width exactly, recording the numbers down to the 1/8th of an inch. Finally, measure the depth. Keep in mind that a nominal "1-inch" thickness is almost always an actual measurement of 0.75 to 0.88 inches.
In scenarios where the old filter is missing, crushed, or clearly the wrong size, you must measure the metal housing itself to determine your exact filter dimensions. Use a flashlight to inspect the intake rack for any bent metal tabs or debris. Measure the internal length from the deepest edge to the outer lip, and repeat this process for the width. Because metal tracks can warp slightly over time, subtract approximately 1/8 inch from your total measurements. This slight reduction ensures the new frame can slide in smoothly without jamming, while still maintaining an airtight seal.
Faced with limited retail options, many property owners attempt DIY solutions to make standard filters fit into non-standard intake racks. As engineers, we strongly advise against this. These improvisations are mechanically unsound and frequently result in severe damage.
Attempting to force a slightly oversized frame into a rigid metal rack compromises the structural integrity of the product. When the cardboard perimeter buckles, the internal synthetic media warps. This buckling creates massive, irregular gaps, completely defeating the purpose of the barrier. Furthermore, a compromised frame can collapse under the suction of the blower motor, potentially pulling the material directly into the ductwork and causing the motor to overheat.
Conversely, trying to secure a small frame using duct tape, cardboard strips, or foam weatherstripping is equally hazardous. Return vents experience significant temperature fluctuations and constant negative pressure. Over time, the adhesives on standard tapes degrade. When these DIY rigging materials inevitably fail, they are frequently sucked into the blower assembly, necessitating immediate and costly professional intervention.
Once the precise dimensions are established, selecting the correct filtration material is the next critical decision. The physical construction of the media directly impacts both air purification and airflow efficiency.
The market generally offers two distinct categories: spun fiberglass and pleated synthetics. Fiberglass panels are the inexpensive, flat filters often characterized by a blue or green web-like appearance. They are designed solely to capture heavy debris, like lint, just to protect the machinery. To truly improve your indoor environment, upgrading to a pleated filter is highly recommended. These are engineered from synthetic materials configured into V-shaped folds, capable of capturing significantly smaller particles.
The primary mechanical advantage of a pleated design lies in its geometry. The "accordion" style folds drastically increase the total surface area contained within the exact same 16.375x21.5 spatial footprint. This expanded area allows the material to trap a higher volume of microscopic contaminants—including smoke, smog, and bacteria—without causing an unacceptable drop in static pressure. The air can flow freely while pollutants are effectively captured.

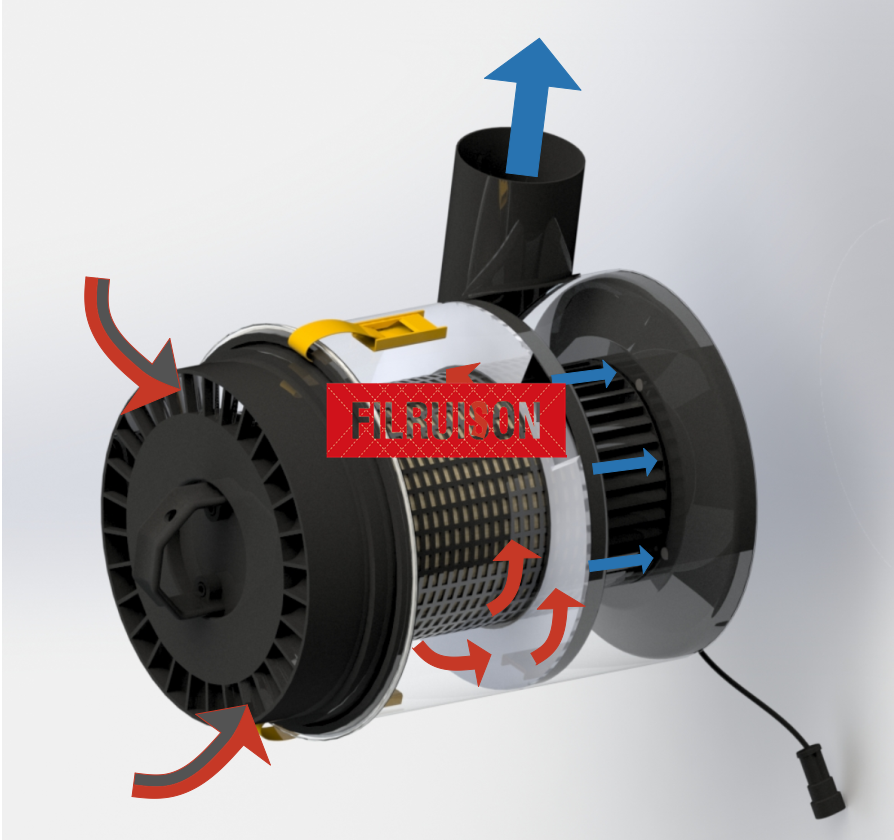

When selecting your specific size, you will encounter the Minimum Efficiency Reporting Value (MERV) rating system. For standard residential homes, a MERV 8 rating is generally sufficient, effectively capturing dust mites and pollen without restricting airflow. Environments requiring stricter control should consider MERV 11 or higher. In advanced industrial applications, such as intelligent cabin overpressure units, filtration systems often utilize high-efficiency media combined with precise structural frames to ensure zero bypass—a standard you should aim to replicate in your own system.
If your measurements dictate a highly specific size like 16.375x21.5x1, attempting to source it from local inventory will likely result in frustration. The modern, stress-free solution is to bypass standard retail limitations entirely.
Big-box hardware stores allocate their limited shelf space to the highest-volume nominal sizes (like 16x20 or 20x20). Odd or highly exact dimensions are simply not profitable for retail display. Continuing to search physical stores for a perfect fit is an inefficient use of time and often leads to the dangerous compromise of buying a "close enough" size.
The most reliable method for securing exact dimensions is to order a custom size air filter directly from specialized manufacturers. The process is entirely driven by precision engineering. You simply input your exact required dimensions down to the fraction of an inch, select your desired MERV rating, and the manufacturer utilizes automated cutting technology to build the frame to those exact specifications. This guarantees a flawless, airtight installation every single time.
A common misconception is that custom manufacturing is prohibitively expensive. In reality, the cost is only marginally higher than a high-quality standard filter. When evaluated through the lens of long-term value, the investment is highly logical. The slight premium paid for exact sizing eliminates the risk of air bypass, protects your coils from fouling, and keeps energy consumption low.
Securing the perfect fit is only half the battle. Maintaining a consistent replacement schedule ensures your system continues to run smoothly without over-amping the blower motor.
As a general engineering standard, 1-inch thick filters possess a limited capacity for holding dust compared to deeper 4-inch media cabinets. Therefore, it is highly recommended to replace your 1-inch filter every 30 to 90 days, depending on the specific conditions within your environment.
Several environmental variables can drastically shorten the lifespan of your media. If you have multiple shedding pets, live in an area prone to high pollen or wildfire smoke, or frequently run your fan continuously, you should inspect the media every three weeks. Additionally, recent home renovations or drywall work will blind a filter almost immediately, requiring an instant replacement to prevent motor burnout.
When it comes to the health of your heating, cooling, and ventilation systems, "close enough" is never good enough. The critical distinction between nominal labels and actual physical dimensions is the key to maintaining pristine indoor air quality. By understanding that a specialized 16.375x21.5x1 requirement demands precision, you empower yourself to protect your equipment from premature failure.
Finding the exact fit does not have to be a recurring headache. Grab a rigid tape measure, verify your exact dimensions, and transition away from unreliable retail shelves. For environments that demand uncompromising air quality and heavy-duty reliability, upgrading to professional-grade filtration is the smartest investment you can make. If you are looking for advanced air purification solutions, intelligent cabin overpressure units, or precise filtration systems designed to handle the toughest environments, explore the specialized engineering solutions at Sykingtech to ensure your air quality is never compromised.
No. A standard off-the-shelf 16x22x1 filter will likely have an actual size of 15.5 x 21.5. This means it will be nearly an inch too short on one side. This creates a massive gap, causing severe air bypass and allowing dust to coat your internal machinery.
Even a 1/4-inch gap is enough to disrupt the static pressure of the system. Unfiltered air will slip through this gap, eventually coating your AC evaporator coil in dirt. This restricts heat transfer, which invariably leads to frozen coils and expensive repair bills.
Retail hardware stores prioritize shelf space for the most common "nominal" sizes (like 16x20 or 20x25) to maximize turnover. Fractional sizes like 16.375x21.5 are specific to certain equipment brands or custom-built return racks, making them unprofitable for general retail. Ordering exact-fit custom sizes online is the standard industry workaround.
Absolutely. If a filter is too small, bypassed dust coats the evaporator coil, acting as an insulator and causing condensation to freeze. Conversely, if a filter is too big and gets crushed during installation, the warped media drastically restricts airflow. Without sufficient warm air blowing over the coil, the refrigerant drops below freezing, turning the entire coil into a block of ice.
While they may cost slightly more upfront than mass-produced standard sizes, the price difference is minimal. The investment quickly pays for itself by preventing catastrophic equipment damage and lowering your monthly energy bills through improved mechanical efficiency.
Yes. Always look for the airflow arrow printed on the outer cardboard edge of your frame. This arrow must point toward the blower motor—representing the direction the air is being pulled through the ductwork.
