You finally pick up a brand-new air filter, haul it home, and discover it absolutely refuses to slide into the HVAC slot. It is a massive frustration, yet incredibly common. Securing the exact fit before purchasing is not just about convenience; it is an engineering necessity. A poorly fitted 19x21x1 filter does more than compromise your indoor air quality. It can inflict severe, long-term mechanical damage on your heating and cooling equipment. Let's break down exactly how to measure your system's tolerances, decode confusing sizing jargon, and secure a perfect seal every single time.
From an engineering perspective, precise filter dimensions are a foundational requirement for mechanical longevity. When a filter seats correctly, it establishes a tight perimeter seal inside the return air duct or the air handler’s dedicated slot. This snug barrier guarantees that all circulating indoor air is forced directly through the pleated media. Consequently, household dust, seasonal pollen, pet dander, and microscopic airborne particulates are captured efficiently.
Conversely, picture sliding a slightly undersized frame into that same slot. Noticeable gaps remain around the edges. In fluid dynamics and HVAC design, this triggers "bypass air." Air inherently follows the path of least resistance. Therefore, a substantial volume of unconditioned, dirty air will bypass the filtration media entirely. This rogue airflow carries raw debris straight into the sensitive internal guts of your machinery.
Over months of operation, this grime cakes onto the evaporator coil and blower motor. A fouled coil rapidly loses its heat-absorption efficiency. This chain reaction often culminates in frozen refrigerant lines, spiked utility bills, and premature mechanical breakdowns. In addition, if a filter is slightly too large and you attempt to force it in, the structural integrity of the frame is destroyed. A crumpled frame restricts proper airflow, forces the blower motor to draw more electrical current, and ruins your system's energy efficiency rating.
One of the most persistent sources of confusion in the hardware store aisle is the discrepancy between the bold numbers printed on the box and the physical reality of the product. To confirm a proper fit, you must grasp the fundamental distinction between the nominal filter size and its true physical measurements.
The nominal size is essentially a rounded-up shorthand. Manufacturers use it to categorize inventory and simplify the shopping experience. For example, "19x21x1" serves as the nominal label. Yet, if you stretch a steel tape measure across that very same product, you will quickly discover it does not measure exactly 19 inches by 21 inches by 1 inch.
Specifically, the actual filter dimensions represent the exact, fraction-of-an-inch measurements of the unit. Standard manufacturing practices dictate that these products are built slightly smaller than their nominal counterparts. This intentional size reduction—typically hovering between 1/8 inch and 1/2 inch—provides the necessary clearance. It allows the frame to glide smoothly into the metal track without snagging, buckling, or requiring brute force.
To illustrate this industry standard undercut, consider the following engineering tolerances:
| Nominal Filter Size | Typical Actual Filter Dimensions (L x W x D) | Industry Standard Undercut |
|---|---|---|
| 19x21x1 | 18.5" x 20.5" x 0.75" | ~0.5" on Length/Width, ~0.25" on Depth |
| 20x20x1 | 19.5" x 19.5" x 0.75" | ~0.5" on Length/Width, ~0.25" on Depth |
| 16x25x1 | 15.5" x 24.5" x 0.75" | ~0.5" on Length/Width, ~0.25" on Depth |
If the original owner’s manual for your furnace is long gone, the most foolproof method to verify your required size is a manual measurement of the existing unit. Relying on memory frequently leads to buying the wrong product, wasting time, and risking system inefficiency.
Grab a standard retractable tape measure and follow these practical field steps to determine your exact specifications. First, always power down the system. Switch your thermostat to the "Off" position before prying open the compartment door. This prevents the blower from suddenly kicking on and pulling dust—or your fingers—into the ductwork.
Next, gently extract the existing unit. Ease the old frame out of its track and handle it with care to prevent a cloud of accumulated dust from billowing into your living space. Lay the dirty frame flat on a stable surface to determine length and width. Stretch your tape across the longest edge first; traditionally, this is deemed the length. Then, measure the shorter edge for the width. Keep in mind that orientation is flexible here—a 19x21x1 is functionally identical to a 21x19x1. You simply rotate the square to match your slot. Log these figures down to the nearest 1/8 of an inch.
Finally, assess the depth. Gauge the thickness of the outer cardboard rim. While broadly marketed as a 1-inch product, your tape will likely reveal a true depth hovering between 3/4 inch (0.75") and 7/8 inch (0.875"). By recording the exact length, width, and depth, you establish the baseline actual dimensions required for your replacement.
Occasionally, a homeowner will swap in a fresh unit without realizing the fit is fundamentally flawed. Trying to make a poorly matched frame work by brute-forcing it into the slot is a reckless gamble that frequently ends in hefty repair bills. The engineering tolerances of contemporary air handlers are incredibly precise.
If a frame is just a fraction of an inch too wide, shoving it into the metal track causes the cardboard to buckle. Once the perimeter buckles, the internal pleated media either tears open or collapses onto itself. It transforms from a breathable membrane into a solid, suffocating wall. The blower motor desperately relies on a specific cubic-feet-per-minute (CFM) volume of return air to keep its own coils cool. Starved of air, it will rapidly overheat and potentially fry entirely.
Furthermore, choked airflow wreaks havoc on the refrigeration cycle during peak summer months. The indoor evaporator coil needs a constant wash of warm ambient air to properly evaporate the refrigerant flowing through its copper veins. If a crushed frame starves the system, the coil's temperature plummets below freezing. Condensation instantly turns to ice, encasing the entire A-coil in a solid block. This halts all cooling and risks "slugging"—where liquid refrigerant flows backward into the outdoor compressor, causing catastrophic failure.

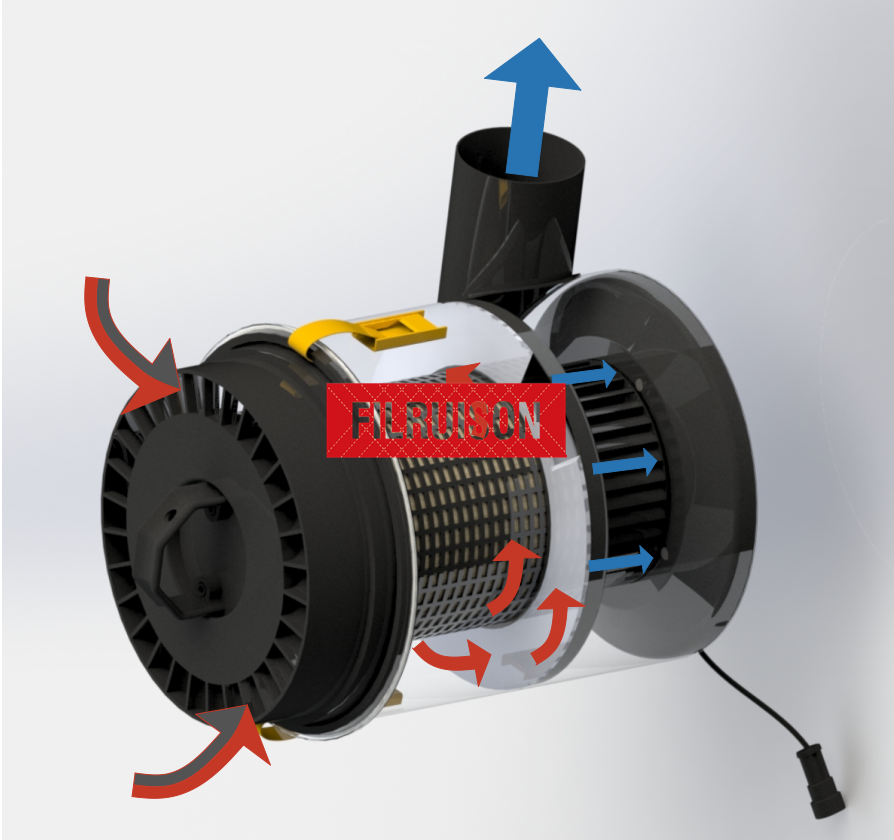

Looking at the broader landscape of air quality control, recent market trends highlight a dramatic shift toward precision engineering. We are moving rapidly away from cheap, one-size-fits-all fiberglass throwaways. Today, high-efficiency pleated media and intelligent cabin overpressure systems set the standard, demanding absolute housing seals to function correctly.
Modern HVAC units are increasingly sophisticated. They incorporate variable-speed blowers and smart sensors designed to maximize energy efficiency. Consequently, the margin for error in filter sizing has shrunk drastically. Today's high-efficiency systems are hyper-sensitive to static pressure changes. A poorly fitted filter that causes even minor airflow restriction can trigger automated system shutdowns or throw error codes on smart thermostats. Industry professionals now prioritize exact undercut dimensions and structural rigidity to protect these expensive, smart-home and industrial investments.
Once you have verified the exact dimensions your system demands, the final hurdle is selecting a premium replacement filter. Not all products rolling off the assembly line are created equal. Making an informed choice requires evaluating structural rigidity, airflow resistance, and particle-capturing efficiency.
Start by scrutinizing the frame construction. A superior product utilizes heavy-duty, moisture-resistant beverage board or metallic framing. Unlike flimsy standard cardboard, robust frames resist warping in damp environments. Furthermore, check for a wire mesh grid bonded to the back of the pleated fabric. This metallic skeleton provides critical structural reinforcement, stopping the media from billowing or collapsing under intense blower suction—a design principle heavily utilized in advanced intelligent cabin filtration units.
Next, evaluate the filtration rating. For standard setups, a MERV rating between 8 and 11 strikes the perfect balance. It is dense enough to trap microscopic invaders like dust mites and seasonal pollen, yet porous enough to prevent dangerous static pressure buildup. If your environment demands higher purity, look for systems engineered to handle HEPA-level filtration without choking the airflow, ensuring optimal pressurization and clean air delivery.
No. You should never attempt to cut, bend, or modify an air filter to make it fit into a smaller housing. Cutting the cardboard frame destroys the structural integrity of the unit and leaves the pleated media exposed and unsupported. This inevitably leads to massive bypass air, and loose pieces of filter material could be sucked directly into your blower motor, causing severe mechanical damage.
Yes. In the HVAC industry, length and width are completely interchangeable. A 19x21x1 filter is functionally the exact same product as a 21x19x1 filter. Because the frame is a simple rectangle, you can rotate the filter 90 degrees to ensure it aligns perfectly with your specific air handler or return grille track.
As a general engineering baseline, a standard 1-inch pleated filter should be replaced every 30 to 90 days. However, this timeline accelerates significantly if you have multiple shedding pets, live in a region with high seasonal dust, or run your system continuously. Regularly inspecting the media every month is the most reliable way to determine when it has reached its maximum particle capacity.
For most residential applications, MERV 8 to MERV 11 is the sweet spot. These ratings effectively capture pollen, dust mites, and pet dander without creating excessive airflow resistance. Going up to MERV 13 or higher in a standard 1-inch slot can sometimes cause too much static pressure drop, forcing your blower motor to overwork unless your system is specifically rated for high-efficiency media.
A whistling or whining noise is a classic symptom of bypass air. It usually means the filter's actual dimensions are slightly too small for the slot, preventing a proper seal. When the blower fan kicks on, air is violently squeezed through the narrow gaps between the filter frame and the metal track, creating an acoustic high-pitched whistle. You may need to verify the exact undercut dimensions and switch to a brand that fits your specific slot tighter.
