Tired of struggling with endless indoor allergies, constantly dusting your furniture, or sneezing the moment your heater kicks on? If you have recently upgraded your heating and cooling setup, you might have encountered an unexpected surprise. Opening the metal access panel in your basement or attic, you realize your system requires a massive, 5-inch thick filter. Those flimsy, standard 1-inch sizes you usually grab at the local hardware store simply will not cut it anymore.
As an HVAC engineer, I constantly see homeowners confused by these oversized units. However, the 20x26x5 filter is actually a massive upgrade for your home. That "5" represents a deep-pleat design—a mechanical enhancement that fundamentally changes how your equipment breathes and scrubs the air. In this guide, we will break down the physical science behind these thick filters from a field perspective. You will learn exactly why deep pleats matter, how they prevent blower motor burnouts, and how to confidently select the right high-capacity media for your system.
When transitioning from basic residential setups to high-capacity purification, understanding your equipment's exact specifications is step one. Navigating sizing labels often feels like deciphering a secret code, but getting it wrong leads to severe equipment damage.
In the climate control industry, we universally categorize filters by Length x Width x Depth. Therefore, a 20x26x5 label indicates a face size of 20 by 26 inches, with a depth of 5 inches. However, you must grasp the critical distinction between the nominal size and the actual size.
The nominal size is just a rounded label for easy marketing on store shelves. In contrast, the actual size is the exact physical measurement of the frame. Typically, a nominal 20x26x5 filter actually measures closer to 19.75" x 25.75" x 4.75". This fractional reduction is highly intentional. It allows the bulky filter to slide smoothly into the designated metal track without binding, bending, or crushing the rigid cardboard frame. Achieving an exact fit is vital. Even a half-inch gap causes "air bypass"—a damaging phenomenon where dirty air sneaks around the filter edges, coats your sensitive evaporator coils in grime, and blows dust right back into your living room.

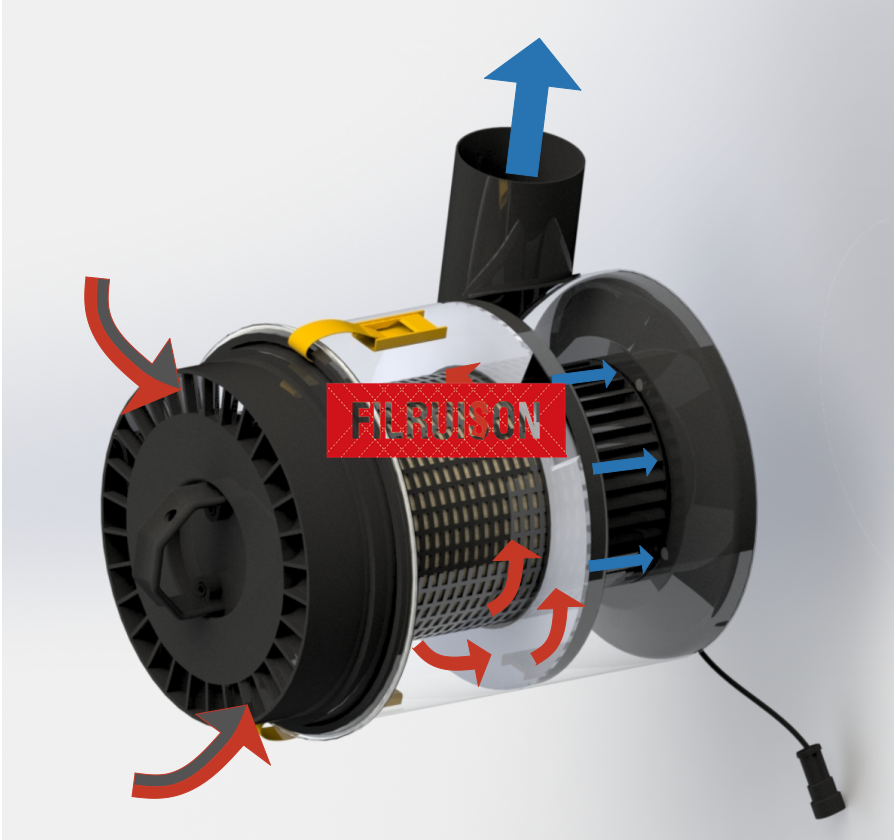

You will not find these massive filters behind the standard return grilles in your hallway ceilings. Instead, they are installed directly at the central air handler or furnace inside a dedicated, heavy-duty media cabinet. They come standard in modern whole-house systems designed for premium air quality. The heavy-duty nature of these thick frames shares core engineering principles with advanced cabin air filtration systems, where maximizing particle capture within a confined, high-velocity footprint is the ultimate goal.
To truly appreciate the value of a 5-inch thick frame, we need to look at the fluid dynamics of air filtration. It is not just about stuffing more material into a slot; it is about how that material is structurally engineered to handle high-velocity air streams.
Traditional non-pleated filters are constructed from flat, loosely spun fiberglass. While exceptionally cheap, they offer a remarkably low surface area. Their primary function is merely to act as a rock-catcher—stopping large, system-damaging debris like pet hair. They offer virtually zero protection against microscopic allergens. Pleated filters utilize densely woven synthetic fabrics folded into an accordion shape, dramatically increasing the surface area available to intercept airborne invaders.
A deep media filter takes pleating to its absolute maximum potential. By extending the frame depth to 5 inches, the fabric forms deep, elongated V-shaped geometries. This structural design is critical for airflow dynamics. The deep V-shape evenly distributes the velocity of the air as it approaches the media. Instead of a forceful gust slamming into a flat wall of fabric, the airflow is gently guided along the angled sides of the pleats. This reduces turbulence, lowers initial resistance, and allows the synthetic fibers to capture particles efficiently across the entire depth of the filter.
Deep pleats do not act like a simple fishing net. They rely on complex physics to scrub the air clean, utilizing three core mechanisms:
The ongoing debate between standard 1-inch filters and 5-inch deep media options ultimately boils down to airflow dynamics, mechanical longevity, and long-term economics. Let's look at the hard data.
| Feature | Standard 1-Inch Filter | 5-Inch Deep-Pleat Filter |
|---|---|---|
| Surface Area | Low (Prone to rapid clogging) | High (4x to 5x more media) |
| Pressure Drop | High (Restricts airflow quickly) | Low (Maintains smooth airflow) |
| Lifespan | 30 to 90 Days | 6 to 12 Months |
| Blower Motor Strain | Severe (Risk of overheating) | Minimal (Saves electricity) |
| Filtration Capability | Basic dust and lint (MERV 4-8) | Microscopic allergens, smoke (MERV 11-13+) |
When well-intentioned homeowners install high-efficiency 1-inch filters, the densely packed material acts like a solid brick wall. The blower motor works exponentially harder to pull air through, frequently leading to frozen evaporator coils and catastrophic mechanical failure. The 5-inch filter elegantly solves this dilemma. The extended depth spreads the incoming air out over a vastly larger canvas, pushing massive volumes of conditioned air through the dense media with minimal resistance.
Recent market analyses reveal a massive shift in building standards regarding HVAC filtration. Driven by a heightened awareness of airborne pathogens and the increasing frequency of extreme weather events—such as widespread wildfires blanketing regions in fine particulate smoke—homeowners are no longer settling for basic dust protection.
Consequently, we are seeing a rapid phase-out of legacy 1-inch filter tracks in new construction. Builders and HVAC contractors are increasingly standardizing the installation of 4-inch and 5-inch media cabinets. This architectural shift acknowledges a fundamental engineering truth: capturing microscopic pathogens and wildfire smoke requires highly dense media. To prevent system failure, that dense media requires the expansive surface area of deep pleats. Furthermore, modern energy-efficiency codes align perfectly with the deep-pleat model, as these filters reduce the amp draw from blower motors and generate significantly less landfill waste over a decade.
Selecting the correct physical size is only half the battle. Choosing the right efficiency rating (MERV) dictates how clean your air will actually be, and how your system will perform.
Best for: Homes without pets, mild climates, and basic system protection.
A MERV 8 rating serves as a robust baseline. It effectively captures larger airborne particles, including household dust, lint, dust mites, and heavy pollen. Because the synthetic fibers are less densely woven, a MERV 8 filter provides maximum airflow efficiency, ensuring your equipment operates smoothly while keeping the internal ductwork spotless.
Best for: Households with shedding dogs/cats, or areas with moderate seasonal pollen.
If you have pets, MERV 11 is generally the optimal choice. It captures a much higher percentage of fine particles, including pet dander, mold spores, and finer dust (1.0 to 3.0 microns). It represents the ideal intersection between rigorous air purification and sustainable system performance.
Best for: Severe allergy sufferers, urban smog areas, and wildfire zones.
Designed for maximum residential air purification, MERV 13 traps microscopic threats such as bacteria, virus carriers, and smoke (0.3 to 1.0 microns). While using MERV 13 in a 1-inch format is a recipe for a frozen air conditioner, applying it to a 20x26x5 frame is incredibly safe. The deep V-shaped pleats distribute the air velocity so efficiently that it remains the only mechanically sound way to achieve near-medical-grade filtration in a standard home.
Even with a generous 6 to 12-month lifespan, environmental variables like a dusty renovation project or a long, hot summer can cause a filter to degrade faster than expected. Monitoring your system for specific warning signs will help you determine exactly when to order a replacement filter.
The most direct diagnostic tool is a visual inspection. Slide the filter out of the cabinet. A brand-new unit features pristine white media. If you are greeted by a thick, caked-on layer of dark gray fuzz bridging the gaps between the pleats, its capacity is exhausted. More importantly, inspect the cardboard frame. If the frame appears warped, bowed, or if the pleats look like they are being sucked inward toward the blower, this is a severe red flag. It means the filter is so clogged that the motor's suction is physically deforming the frame.
Your mechanical equipment will also cry out for help. If your AC or furnace runs unusually long, continuous cycles just to maintain the thermostat's set temperature, restricted airflow is the likely culprit. Over time, this mechanical struggle reflects as unexplained spikes in your monthly utility bills.
Proper installation is just as critical as selecting the right MERV rating. A poorly installed premium filter is practically useless if air easily leaks around it.
The 20x26x5 air filter is far more than just a piece of pleated fabric; it is a critical, high-performance component of your home's respiratory system. By utilizing a deep-pleat design, it offers the ultimate balance of superior particle capture and healthy, unrestricted airflow.
Whether you are trying to mitigate severe spring allergies, filter out wildfire smoke, or simply extend the lifespan of your expensive heating and cooling equipment, upgrading to a thicker media filter is a remarkably smart investment. If you are looking for heavy-duty, intelligent filtration solutions that leverage commercial-grade engineering, explore the advanced systems at Sykingtech to transform your environment into a sanctuary of clean air.
Technically, yes, if you install a specific track adapter. However, doing so is highly discouraged by climate control professionals. By downgrading to a 1-inch filter, you immediately forfeit all mechanical advantages. The drastically reduced surface area means the filter will clog much faster, increasing static pressure and forcing you to replace it every 30 days instead of once a year.
No, they are not. High-efficiency pleated filters are manufactured using advanced synthetic fibers that carry a specific electrostatic charge. This invisible charge acts like a magnet for microscopic particles. Washing the filter physically tears the delicate media, washes away the charge, and creates a damp environment inside your ductwork that encourages dangerous mold growth.
The dimensions printed in bold text on the frame represent the "nominal" size—a standardized, rounded number for easy purchasing. The "actual" size is typically a quarter to a half-inch smaller. This intentional manufacturing tolerance ensures the rigid cardboard frame can slide smoothly into the metal cabinet without getting stuck.
Energy consumption in an HVAC system is heavily tied to the workload of the blower motor. Because deep pleats contain exponentially more surface area, conditioned air passes through with significantly less physical resistance. When your motor does not have to strain against a restrictive, clogged filter, it draws fewer electrical amps, directly translating to lower monthly bills.
In a standard 1-inch format, MERV 13 is frequently too dense for residential systems. However, in a 5-inch deep media filter, the massive surface area easily compensates for the density of the MERV 13 material. This allows you to safely trap microscopic viruses and smoke without starving your equipment of air.
If your current setup only has a 1-inch slot in the return grille or at the furnace base, you cannot simply jam a 5-inch filter into it. You will need an HVAC technician to modify your ductwork and install a dedicated 5-inch media cabinet. Fortunately, modern blower motors handle the low pressure drop of a 5-inch filter exceptionally well once the proper housing is installed.
While it varies by MERV rating and blower speed, a high-quality 20x26x5 MERV 11 filter typically registers an initial pressure drop between 0.15 and 0.22 inches of water column (in. w.c.) at standard residential airflow velocities. This is highly efficient and keeps the total external static pressure of your system well within safe operational limits.
