You spend hours meticulously prepping a surface. Then, a sudden burst of water sprays out of your pneumatic gun. The fresh paint job is instantly ruined. Or perhaps you notice your expensive pneumatic tools sputtering and seizing up long before their expected lifespan. As a facility operator, if you run machinery powered by compressed air, you are fighting a constant, invisible battle against atmospheric moisture.
Ambient air naturally holds water vapor. The mechanical process of compressing that air violently concentrates this moisture. If left untreated, this condensation inevitably leads to catastrophic system damage. Looking at recent industrial manufacturing trends, there is a clear paradigm shift toward hyper-precision. As facilities increasingly integrate automated pneumatics, sensitive robotics, and advanced CNC machinery, the tolerance for pipeline contamination has essentially dropped to zero. This industry-wide push for strict ISO 8573-1 air quality compliance means that treating your air supply is no longer just an optional best practice. Today, it is a mandatory baseline to remain competitive, protect capital equipment, and prevent costly production downtime.
The ultimate defense against this threat is a properly engineered purification system. In this comprehensive guide, we will break down exactly how these components work, the hidden dangers of wet air, and how to determine when your facility absolutely needs an equipment upgrade.
In the pneumatic industry, operators and facility managers frequently use the phrase "air filter dryer" as a convenient catch-all term. However, to engineer a truly reliable system, it is crucial to understand that this phrase actually refers to two completely distinct mechanical components. They work in tandem to purify the air stream.
To achieve clean, dry air, your network relies on specialized units that target entirely different states of matter and types of contamination.
A compressor filter acts as a physical barrier designed to capture solid and liquid contaminants. As ambient air is drawn into the system, it brings along abrasive dust, pollen, and environmental dirt. Furthermore, the compressor itself inevitably introduces lubricating oil aerosols and microscopic metal wear particles into the air stream. The filter utilizes specialized media—often constructed from pleated borosilicate microfiber—to intercept these solid particulates and coalesce liquid oil droplets. It safely drains them before they can travel further down the pipeline.
In stark contrast, a dryer serves an entirely different thermodynamic function. It does not catch solid dirt. Rather, it alters the physical state of the air itself. The dryer's sole purpose is to lower the dew point of the compressed air, actively preventing invisible water vapor from condensing into harmful liquid water within your pneumatic network.
While they perform different tasks, these components are functionally codependent. They operate together as a unified defense mechanism. Typically, a pre-filter is installed upstream to strip away bulk liquid water droplets and heavy oil sludge. This crucial step protects the highly sensitive internal mechanisms of the dryer. The dryer then processes the air to extract the gaseous vapor. Finally, an after-filter is often deployed downstream to catch any remaining micro-particulates, such as abrasive desiccant dust. Together, this sequential arrangement forms a complete, bulletproof purification system.
Understanding why moisture relentlessly accumulates in your pipelines requires a brief look at the fundamental physics of atmospheric air and the mechanical compression cycle.
In fluid dynamics, we treat ambient atmospheric air like a microscopic, invisible sponge that constantly holds varying amounts of water vapor. The exact amount of moisture this "sponge" can hold depends entirely on the ambient temperature and relative humidity of your environment. Warmer air has the capacity to hold significantly more moisture than colder air.
When an air compressor kicks on, it inhales a massive volume of this moisture-laden ambient air. It violently squeezes it into a fraction of its original size. According to the laws of thermodynamics, this rapid reduction in physical volume causes a sharp, immediate increase in temperature. Because the air is now incredibly hot, it can temporarily hold onto all that concentrated water vapor.
The real problem occurs the moment the air leaves the compressor. As the compressed air travels through your facility's piping network, it naturally cools down to match the ambient temperature of the building. Because cooler air simply cannot hold as much moisture, our metaphorical sponge is effectively squeezed tight. The invisible water vapor crosses its dew point threshold and rapidly condenses into heavy, liquid water droplets. If a proper purification system is not in place to intercept it, this newly formed liquid is pushed directly into your sensitive machinery.
Moisture in a pneumatic network is not merely a minor inconvenience. It is a highly destructive, aggressive contaminant. Facility managers who neglect proper moisture removal inevitably face escalating maintenance costs, frustrating production bottlenecks, and unpredictable equipment failures.
Industrial pneumatic tools rely on incredibly precise internal tolerances and specific oil lubrication to operate at high speeds without overheating. When liquid condensate breaches the tight internal clearances of an impact wrench or pneumatic cylinder, it aggressively washes away the manufacturer's lubricating film. Without this protective barrier, metal grinds directly on metal. This severe friction leads to premature wear of bearings, the rapid degradation of rubber O-rings, and eventually, a completely seized tool. Furthermore, water causes delicate control valves to stick, resulting in sluggish, erratic machine movements that can completely disrupt automated assembly lines.
Most industrial compressed air piping is constructed from traditional carbon steel or black iron. When these metals are constantly exposed to a mixture of liquid water and pressurized oxygen, oxidation—or rust—is mathematically inevitable. Over time, thick rust scales form on the interior walls of the pipes. As high-velocity air flows through the system, it breaks these brittle rust flakes loose, turning them into a highly abrasive projectile. This flying rust debris acts exactly like sandblasting material. It deeply scores the inside of pneumatic cylinders, clogs delicate pilot valves, and prematurely blinds downstream filtration media.
Beyond the mechanical damage to your equipment, untreated moisture directly threatens the quality and safety of your end product. The financial impact varies depending on the specific industrial application:
A remarkably common misconception in pneumatic system design is the belief that installing a standard mechanical filter is sufficient to eliminate water problems. This dangerous misunderstanding frequently leads to undersized systems and unexpected, costly moisture damage down the road.
| Feature | Mechanical Pre/After Filter | Compressed Air Dryer |
|---|---|---|
| Primary Target | Solid particulates, liquid water droplets, oil aerosols | Invisible water vapor (gas) |
| Working Principle | Physical barrier (coalescing media, centrifugal force) | Thermodynamic alteration (refrigeration, adsorption, membrane) |
| Dew Point Impact | None. Air remains 100% saturated with vapor. | Actively lowers dew point to prevent downstream condensation. |
| System Placement | Installed upstream (protection) and downstream (polishing) of the dryer. | Installed centrally after the wet receiver tank and pre-filter. |
Standard inline water separators and particulate housings are highly effective at physically forcing liquid out of the air stream. However, they are completely incapable of removing water vapor. If you only install a standard separator, the treated air will simply condense into brand-new liquid water as it cools further downstream.
Conversely, a dryer is a highly delicate piece of equipment that simply cannot survive independently in an industrial environment. It desperately requires the protection of a robust, upstream filtration system. If heavy oil aerosols and solid dirt bypass a basic separator and enter a refrigerated unit, they will coat the internal copper heat exchanger. This acts as a thick thermal insulator, drastically reducing the unit's cooling efficiency. Consequently, integrating both components into a unified setup is not an optional upgrade; it is a mandatory engineering requirement for long-term system health.
Selecting the correct moisture elimination technology depends entirely on the specific dew point required by your unique application. The industry generally categorizes a compressed air dryer into three primary technologies. Each offers distinct operational mechanics and ideal use cases.
Refrigerated units are by far the most common, reliable, and cost-effective solution for general industrial applications.
These units operate on the exact same thermodynamic principles as a commercial refrigerator. They utilize a closed-loop refrigerant circuit to rapidly cool the incoming compressed air to approximately 38°F (3°C). This sudden, sharp drop in temperature forces the suspended water vapor to instantly condense into liquid water. The liquid is then mechanically separated and discharged through an automatic drain valve. Finally, the cold, dry air is reheated by the incoming warm air before exiting the unit. This clever heat exchange prevents condensation from forming on the outside of your facility's pipes. They are the ideal choice for indoor manufacturing facilities, automotive repair shops, and standard CNC machining centers where ambient temperatures do not drop below freezing.
When an application demands ultra-dry air, or when your facility's piping is exposed to harsh, freezing outdoor temperatures, desiccant technology becomes the required standard.
Instead of cooling the air, these systems utilize a chemical process called adsorption. The wet air is directed through a large twin-tower vessel filled with thousands of porous desiccant beads, such as activated alumina or silica gel. The moisture physically binds to the microscopic pores of the beads without changing the desiccant's solid state. While one tower actively dries the air, the other tower undergoes a regeneration cycle to purge the trapped moisture. This advanced technology can achieve incredibly low pressure dew points, ranging from -40°F to -100°F (-40°C to -73°C). They are essential for hospital medical air systems, pharmaceutical manufacturing, and semiconductor fabrication.
Membrane technology offers a highly specialized, solid-state approach to moisture management, relying entirely on advanced material science rather than moving mechanical parts.
The compressed air is forced through a tightly packed bundle of microscopic, semi-permeable polymer tubes. The unique molecular structure of these tubes allows fast-moving water vapor molecules to pass right through the membrane walls and vent harmlessly into the atmosphere. Meanwhile, the larger oxygen and nitrogen molecules (the dry air) are trapped and continue down the pipe. Because they require zero electricity and have no moving parts to wear out, they are perfect for remote point-of-use applications, mobile equipment, and hazardous, explosive environments where spark risks must be entirely eliminated.
Determining whether your current setup requires a dedicated drying unit involves objectively assessing both the physical symptoms presenting within your facility and the specific technical requirements of your daily operational processes.
Often, a struggling pneumatic system will present clear, undeniable physical symptoms of moisture overload. If you observe any of the following issues on your shop floor, immediate intervention is required:
Even if you do not see visible water dripping from the lines, upgrading your operations often necessitates the immediate addition of a drying unit. If a facility transitions from basic, low-stakes applications (like inflating tires) to high-precision tasks, eliminating vapor transitions from a luxury to an absolute necessity. Processes such as plasma cutting, powder coating, or abrasive sandblasting require strict adherence to clean air standards. In these high-stakes environments, even microscopic amounts of vapor can cause plasma cutter consumables to burn out in minutes or cause expensive powder coating to clump and fail to adhere to metal substrates.
Investing in purification equipment requires careful, mathematical calculation. An improperly sized system will either fail completely to remove the moisture or create severe pressure drops. This forces your air compressor to overwork, wasting thousands of dollars in electrical energy annually.
The foundational sizing metrics for any pneumatic equipment are Cubic Feet per Minute (CFM) and Pounds per Square Inch (PSI). Your chosen equipment must be explicitly rated to handle the maximum volumetric flow (CFM) produced by your air compressor at its peak operating pressure (PSI).
If you mistakenly install a unit rated for 50 CFM on a compressor that outputs 100 CFM, the air will travel through the heat exchanger or desiccant bed far too quickly. The system simply will not have enough contact time to extract the moisture, rendering the equipment useless. Conversely, drastically oversizing a refrigerated unit can lead to internal freezing issues and unnecessary upfront capital expenditure.
You must carefully match the technology to the specific dryness level required by your most sensitive downstream equipment. Refer to the manufacturer specifications of your pneumatic tools to determine their required ISO 8573-1 moisture class. If the machinery requires a standard +38°F dew point, a reliable refrigerated unit is perfectly sufficient. However, if the equipment specifies a strict -40°F dew point, you have no choice but to specify a desiccant system.

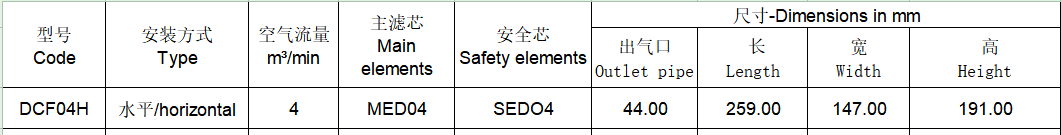

As previously established, your drying equipment is only as reliable as the pre-filtration protecting it. When engineering a purification setup, the housing material and filter media dictate the system's survival. For instance, advanced industrial units like the DCF series utilize robust die-cast aluminum alloy housings, capable of safely withstanding maximum operating pressures up to 1.6 MPa (232 PSI). Inside, they employ deep-pleated borosilicate glass fiber media. This specific construction guarantees the high-efficiency removal of sub-micron oil aerosols down to 0.01 microns. By effectively intercepting these aggressive contaminants before they ever reach the delicate heat exchangers or desiccant beds, you secure the lifespan of the entire air dryer filter system and ensure your facility operates without unexpected interruptions.
Purchasing and properly installing the equipment is only the first step in the journey. To maintain consistent, ISO-compliant air quality and prevent unexpected pressure drops, facility managers must implement a strict, proactive maintenance schedule.
Filter media naturally degrades and clogs over time as it successfully captures dirt, rust, and oil. A heavily clogged element creates a severe restriction to airflow, known as a pressure drop (ΔP). This restriction forces the air compressor to consume significantly more electricity just to push the air through the blockage. Under standard industrial operating conditions, internal elements should be replaced every 6 to 12 months, or roughly every 4,000 to 8,000 operating hours, regardless of how they look visually.
Both mechanical separators and refrigerated units rely heavily on automatic drain valves to expel the accumulated liquid condensate and oil emulsion. If these drains become clogged with rust flakes or thick oil sludge, the liquid will quickly back up into the housing. Once the housing fills completely, the liquid water will be pushed directly downstream, completely negating the purpose of the entire system. Maintenance personnel should manually test all auto-drains weekly to ensure they are firing correctly.
Never assume the equipment is working flawlessly simply because the power light is on. Many modern systems feature digital dew point indicators or color-changing moisture sensors on the control panel. Operators should make it a habit to log these readings daily. A slowly rising dew point is an excellent early warning sign of an impending failure—such as a slow refrigerant leak, a dying condenser fan, or fully saturated desiccant beads.
Refrigerated units expel the heat they remove from the compressed air through a finned condenser coil, much like the radiator on your car or a home air conditioning unit. In dusty, industrial manufacturing environments, these coils quickly become choked with airborne debris and cardboard fibers. A clogged condenser acts like a thermal blanket, preventing heat transfer and causing the internal refrigerant temperature to spike dangerously high. This leads to a total loss of cooling capacity. Condenser coils should be gently blown out with low-pressure air at least once a month.
A properly configured purification system is not just an optional accessory. It is the vital heart of a reliable, efficient pneumatic network. By understanding the distinct roles of mechanical filtration and thermodynamic drying, you can effectively stop moisture issues at the source, preventing catastrophic tool damage and ruined end-products. Investing in high-quality equipment protects your heavy industrial investments and ensures maximum energy efficiency.
Take the time to evaluate your current setup today. Stop letting invisible water vapor dictate your facility's downtime. For a reliable, engineering-grade upgrade, explore the precision purification solutions at Sykingtech. Whether you need a robust DCF series housing to intercept oil aerosols or a comprehensive moisture control system, you can find the exact equipment tailored to match your most demanding production requirements.
No, you absolutely cannot substitute one for the other because they target entirely different states of matter. A standard inline water separator uses mechanical separation (like centrifugal force or physical media barriers) to catch liquid water droplets, solid rust, and oil aerosols. However, it is physically incapable of removing water vapor (water in its gaseous state). As the compressed air travels further down your facility's piping and cools down, that invisible vapor will inevitably condense into new liquid water. To achieve true moisture elimination and prevent downstream condensation, you must use a dryer to lower the dew point.
The strategic placement of your components directly dictates the overall efficiency of the system. The universally recommended installation sequence is as follows: First, the Air Compressor generates the air. Next, it enters a Wet Receiver Tank to allow initial cooling and drop out bulk liquid. Then, it passes through a Pre-Filter (Coalescing) to remove remaining liquid water and oil aerosols. Only then does it enter the Air Dryer to remove the water vapor. Following that, an After-Filter (Particulate) catches any solid contaminants generated by the dryer itself. Finally, it enters a Dry Receiver Tank before being distributed to the Facility Piping.
Under standard industrial operating conditions—such as running a single 8-hour shift, five days a week in a relatively clean manufacturing environment—filter elements should be replaced every 6 to 12 months. In continuous 24/7 operations, this translates to roughly every 4,000 to 8,000 operating hours. However, time is only a secondary metric; differential pressure is your primary empirical indicator. If the pressure drop across the housing exceeds 5 to 7 PSI, the media is fully saturated and the element must be replaced immediately to prevent excessive energy waste.
If you are finding liquid water downstream of a refrigerated unit, it typically indicates a failure in one of four specific areas. First, the unit may be severely undersized for the compressor's actual CFM output, meaning the air moves too fast to cool properly. Second, the ambient temperature in your compressor room may be too high (exceeding 100°F), overwhelming the refrigeration circuit. Third, the condenser coils may be thickly clogged with shop dust, preventing critical heat dissipation. Finally, the upstream pre-filter's auto-drain may have failed, causing bulk liquid water to flood directly into the unit and overwhelm its internal separator.
Bypassing the air dryer allows 100% moisture-saturated air directly into your piping network. As this warm air travels and cools to the ambient temperature of your facility, the vapor will rapidly condense into liquid water. This will immediately begin washing away the essential lubrication inside your pneumatic tools, causing severe friction and premature failure. Furthermore, it will initiate aggressive rust formation inside steel piping and drastically increase the risk of ruining paint jobs, powder coating, or sensitive electronic assemblies downstream.
To properly size your filtration equipment, you must match the filter's rated capacity to the maximum output of your air compressor. Look at your compressor's data plate to find its maximum Cubic Feet per Minute (CFM) output and its maximum operating pressure (PSI). Your chosen filter housing must have a CFM rating equal to or slightly greater than the compressor's maximum output at that specific pressure. Undersizing the unit creates severe pressure drops and limits airflow, while drastically oversizing it can reduce the coalescing efficiency of the internal media.
