Air Filter Kits: What Should Be Included for a Complete Intake Setup?

Quick Answer: A complete industrial air filter kit is a custom-configured assembly of core filters, pre-cleaners, and specific mounting accessories tailored to precise airflow requirements, rather than a single pre-packaged box. Building an effective intake setup requires a primary filtration unit, a high-efficiency pre-cleaner to manage heavy particulate loads, and essential integration hardware like brackets, hoses, and clamps. Selecting the right components depends on matching the system to specific equipment airflow demands to ensure optimal protection and performance.

Key Takeaways:

• Complete intake setups require a combination of primary filters, pre-cleaners, and integration hardware.
• Cyclone pre-cleaners are critical for extending the lifespan of the main filter element in high-dust environments.
• Proper intake accessories ensure a secure, leak-free connection between the filter housing and the engine or compressor.
• Component selection must align with the specific air flow range of the machinery to prevent restriction or inefficiency.

Anatomy of an Industrial Air Cleaner Assembly

In consumer automotive markets, an "air filter kit" often refers to a pre-packaged box containing a standard drop-in filter and basic instructions. However, in B2B, heavy-duty, and industrial contexts, an air intake kit is fundamentally different. It is a custom-configured assembly of individual, highly specialized components designed to protect heavy machinery while maintaining optimal airflow under extreme environmental conditions.

Since its establishment in 1975, Shanghai SYKING Industry Technical co.,Ltd. has focused on engineering these robust industrial filtration solutions. An industrial air cleaner assembly is not a one-size-fits-all product. Instead, it is a modular system built from distinct parts that must work in unison. The primary goal of this assembly is twofold: to prevent damaging particulates from entering an engine or air compressor, and to ensure that the equipment receives the exact volume of clean air required for efficient combustion or compression.

Understanding the anatomy of these setups is the first step in procurement. A complete configuration requires selecting the right core filtration media to capture microscopic contaminants, integrating a pre-cleaning stage to handle bulk debris, and sourcing the exact physical hardware necessary to mount and seal the system securely to the machinery.

Core Filtration Units and Pre-Cleaners

The foundation of any industrial air intake kit is the core filtration unit. This section of the assembly is responsible for the actual separation of contaminants from the incoming air stream. In heavy-duty applications, relying on a single filter element is rarely sufficient due to the high volume of airborne dust, debris, and moisture present in the operating environment.

To manage heavy particulate loads effectively, a complete setup typically incorporates a two-stage approach: a pre-cleaner and a primary filter element. The pre-cleaner acts as the first line of defense. By utilizing centrifugal force, a cyclone pre-cleaner spins the incoming air, forcing heavier particles like sand, large dust, and water droplets to the outer walls and expelling them before they can reach the main filter. This process drastically reduces the burden on the primary filtration media.

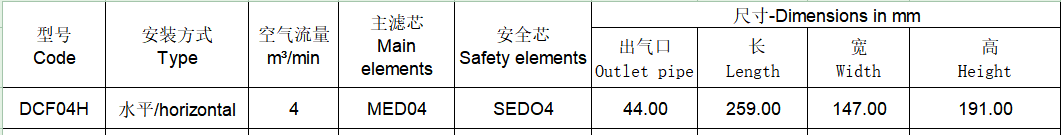

Following the pre-cleaner, the air passes through the main filter housing and into the primary filter element, which is often constructed from advanced materials like honeycomb structures to maximize surface area. For example, the DCF Series Air Filter integrates a high-efficiency cyclone pre-cleaner and a honeycomb filter element into a single, cohesive unit. According to manufacturer specifications, the DCF series utilizes nano filter material designed to filter out up to 99.999% of pollutants.

• Cyclone Pre-cleaner: Separates bulk debris and moisture using centrifugal force, protecting the downstream media from premature clogging.
• Filter Housing: Provides a durable, sealed enclosure that protects the internal elements from physical damage and environmental exposure.
• Primary Filter Element: Captures microscopic particulates that bypass the pre-cleaner, ensuring only clean air reaches the engine or compressor.

Because these core units are responsible for the critical task of air purification, they cannot function in isolation. They require secure physical integration to connect to the equipment without introducing leaks.

Essential Intake Accessories for System Integration

A high-efficiency filter and pre-cleaner combination is rendered useless if the physical connection to the machinery is compromised. Unfiltered air will always take the path of least resistance; therefore, even a microscopic gap in the intake plumbing can allow dust to bypass the filter entirely, leading to catastrophic engine or compressor failure. This makes Assembly & Accessories a non-negotiable component of a complete filter housing kit.

Procuring a complete setup requires sourcing the specific hardware needed to physically build and connect the system. These accessories must be engineered to withstand the vibration, temperature fluctuations, and physical stress inherent in industrial operations.

• Mounting Brackets: Industrial air cleaner assemblies are heavy, especially when subjected to the dynamic forces of mobile equipment. Heavy-duty steel or reinforced mounting brackets are required to secure the filter housing to the chassis or engine block, preventing vibration-induced metal fatigue and structural failure.
• Intake Hoses and Piping: These components route the clean air from the filter housing to the engine intake manifold or compressor inlet. They must be constructed from durable, heat-resistant elastomers or rigid piping that will not collapse under high vacuum pressure.
• Clamps and Fasteners: High-torque, constant-tension clamps are necessary to create airtight seals at every connection point along the intake routing. Standard worm-gear clamps are often insufficient for heavy-duty applications, as they can loosen over time due to thermal expansion and vibration.

While selecting the right physical hardware ensures a secure and leak-free installation, even perfectly mounted components will fail or starve the engine if they do not match the equipment's specific operational demands.

Matching Components to Air Flow Requirements

The most critical technical factor in configuring an air filter kit is matching the capacity of the selected components to the precise airflow requirements of the machinery. Every engine and air compressor requires a specific volume of air to operate efficiently, typically measured in cubic feet per minute (CFM) or cubic meters per minute (m³/min).

If an air cleaner assembly is undersized, it will create excessive restriction in the intake system. This restriction acts like a choke hold on the equipment, leading to a significant pressure drop. For internal combustion engines, this results in fuel-rich mixtures, increased exhaust temperatures, loss of horsepower, and elevated emissions. For air compressors, an undersized filter reduces volumetric efficiency and forces the compressor to work harder, accelerating wear and tear.

Conversely, if a cyclone pre-cleaner is massively oversized for the application, the incoming air velocity may be too low to generate the necessary centrifugal force, rendering the pre-cleaning stage ineffective and allowing heavy debris to prematurely clog the main filter element.

To ensure optimal performance, the entire intake setup must be rated for the equipment's maximum airflow demand. SYKING's DCF series air filters, for instance, are engineered to handle a wide air flow range from 1.5m³/min to 25m³/min. Procurement teams and technical evaluators must consult their equipment's technical specifications to determine the exact airflow baseline before selecting the corresponding filter housings, pre-cleaners, and intake accessories. Proper sizing is an absolute condition for the system to function as intended.

Maintenance Considerations for Multi-Component Setups

Once an industrial air intake setup is properly sized, assembled, and integrated, it introduces specific ongoing operational realities. A multi-component system requires a different maintenance approach compared to a simple, single-stage drop-in filter.

The inclusion of a high-efficiency cyclone pre-cleaner significantly alters the maintenance dynamic. Because the pre-cleaner removes the majority of bulk contaminants before they reach the primary filter, the replacement interval for the main honeycomb filter element is generally extended. However, this means the pre-cleaner itself requires periodic attention to ensure it continues to function effectively.

Important limitations and maintenance constraints:

• Pre-cleaner Evacuation: Depending on the specific design, some cyclone pre-cleaners collect debris in a transparent bowl or dust trap. This receptacle must be visually inspected and manually emptied before it reaches maximum capacity; otherwise, the accumulated dust will be re-entrained into the airflow and sent directly into the primary filter.
• Accessory Inspections: The physical integration hardware is subject to constant vibration and thermal cycling. Maintenance routines must include regular torque checks on all clamps and visual inspections of rubber intake hoses for signs of cracking, chafing, or vacuum collapse.
• System Integrity: A complete setup is only as effective as its weakest seal. Replacing the main filter element requires careful attention to ensure housing gaskets are seated correctly and all latches are fully engaged to prevent dust bypass.

Frequently Asked Questions

What is the difference between a standard air filter and a complete air intake kit?

A standard air filter typically refers only to the replaceable filtration media (the element itself). A complete air intake kit, in an industrial context, is a comprehensive assembly that includes the primary filter element, the protective outer housing, a pre-cleaner for heavy debris, and all the necessary mounting brackets, hoses, and clamps required to integrate the system with the machinery.

Do all industrial air cleaner assemblies require a pre-cleaner?

While not strictly mandatory for clean indoor environments, pre-cleaners are highly recommended and often essential for equipment operating in high-dust, off-road, or heavy industrial conditions. They manage the bulk particulate load, which prevents the primary filter element from clogging prematurely and ensures consistent airflow to the engine or compressor.

What materials are typically used for intake accessories and hoses?

Intake accessories are manufactured from materials designed to withstand harsh industrial environments. Mounting brackets are usually made from heavy-gauge steel or reinforced alloys for structural stability. Intake hoses are typically constructed from heat-resistant elastomers, silicone, or reinforced rubber to withstand high vacuum pressures, temperature extremes, and constant engine vibration without collapsing or cracking.

How does airflow capacity impact the selection of filter housing kits?

Airflow capacity dictates the physical size and internal design of the filter housing and pre-cleaner. If the selected kit cannot accommodate the equipment's maximum cubic meters per minute (m³/min) requirement, it will cause a pressure drop, starving the machinery of air. The components must be mathematically matched to the equipment's demands to prevent performance loss and mechanical strain.

***

Configuring a complete air intake setup requires precise matching of core filters, pre-cleaners, and integration accessories to your equipment's specific airflow demands. Review technical selection guides or consult with engineering specialists to evaluate the correct components and ensure optimal, leak-free system integration for your industrial machinery.
