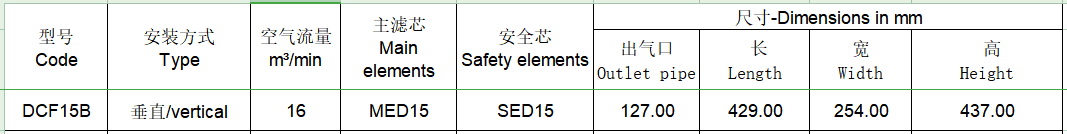

DCF15B
FILRUISON
DCF series honeycomb air filter
Working principle: Air first enters the swirl tube air pre-cleaner at the end of the air filter housing, causing the air flow to rotate at high speed, and the centrifugal force generated separates the heaviest impurities from the air flow. These pollutants are discharged through the dust valve at the lower end of the pre-cleaner at the end of the filter. The initially purified air flows into the honeycomb air cleaner elements (main filter element and safety filter element). The filter element produced with new nano filter material will filter out 99.999% of the remaining pollutants in the air, ensuring that clean air flows into the engine or air compressor.
Filter:
Compact structure, takes up little space
Glass fiber reinforced nylon shell, light weight
Wide air flow range, from 1.5m³/min to 25m3/min.
Up to 99.999% filtration efficiency.
Integrated high-efficiency cyclone pre-cleaner and honeycomb filter element, Long working life.
The filter element is easy to disassemble and assemble, no tools required
Variety installation possibilities(horizontal or vertical).
Filter element:
High dust holding capacity and high filtration efficiency nano-technology filter material.
Honeycomb molding is stable, small in size and large in filtering area.
The top polyurethane sealing ring surface fits the shell, ensuring reliable sealing.
Long life, low pressure drop, rugged and durable.
DCF series honeycomb air filter
Working principle: Air first enters the swirl tube air pre-cleaner at the end of the air filter housing, causing the air flow to rotate at high speed, and the centrifugal force generated separates the heaviest impurities from the air flow. These pollutants are discharged through the dust valve at the lower end of the pre-cleaner at the end of the filter. The initially purified air flows into the honeycomb air cleaner elements (main filter element and safety filter element). The filter element produced with new nano filter material will filter out 99.999% of the remaining pollutants in the air, ensuring that clean air flows into the engine or air compressor.
Filter:
Compact structure, takes up little space
Glass fiber reinforced nylon shell, light weight
Wide air flow range, from 1.5m³/min to 25m3/min.
Up to 99.999% filtration efficiency.
Integrated high-efficiency cyclone pre-cleaner and honeycomb filter element, Long working life.
The filter element is easy to disassemble and assemble, no tools required
Variety installation possibilities(horizontal or vertical).
Filter element:
High dust holding capacity and high filtration efficiency nano-technology filter material.
Honeycomb molding is stable, small in size and large in filtering area.
The top polyurethane sealing ring surface fits the shell, ensuring reliable sealing.
Long life, low pressure drop, rugged and durable.
