You are in the middle of a critical production run or laying down the final coat of paint, and your air compressor is roaring in the corner of a dusty workshop. Suddenly, you notice the factory plastic filter housing has cracked. Worse, it might have vibrated off completely. Leaving a pneumatic machine unprotected in such an environment is a guaranteed death sentence for the pump. Airborne debris, abrasive sawdust, and environmental moisture will rapidly score the internal cylinders, permanently ruining the delicate reed valves.
Faced with broken factory parts, many operators naturally pivot to a custom solution. It makes sense on the surface. Engineering your own setup can save a few dollars upfront and potentially improve volumetric airflow. However, utilizing incorrect materials frequently results in catastrophic mechanical failure. Borrowing a foundational concept from computer science, the "Garbage In, Garbage Out" (GIGO) principle perfectly illustrates pneumatic mechanics. The ambient air in a typical workshop is heavily saturated with microscopic grit, metal shavings, and paint overspray.
If this contaminated air enters the pump, it does not magically disappear. Instead, it becomes a highly abrasive grinding paste. It travels through the system, resulting in dirty compressed air exiting the tank, which ultimately degrades expensive automated machinery downstream and ruins precision tools. When micro-abrasives bypass an inadequate setup, they act akin to liquid sandpaper inside the pump. As the piston cycles at high velocities, these particles aggressively score the cylinder walls. Over time, this constant abrasion causes blow-by—a severe loss of compression forcing the motor to run longer and hotter just to fill the tank. Therefore, the primary objective of any custom modification is to guarantee maximum intake protection, ideally capturing particles down to the 5-10 micron range, without choking the air supply.
When engineering a custom solution, material selection remains the most critical variable. Utilizing components specifically designed for high-flow environments yields the most reliable results. As a general engineering rule, your filtration media should be sized to handle at least 1.5 times the maximum CFM displacement of your pump.
Lawnmower, motorcycle, and standard automotive paper air filters are widely considered the holy grail for garage fabricators. Manufacturers engineer these pleated cellulose elements to handle massive CFM requirements while offering excellent particulate capture. Internal combustion engines demand huge volumes of air to run smoothly. Consequently, a repurposed car filter easily satisfies the suction needs of a large 60-gallon shop compressor without inducing a noticeable pressure drop.
Washable, oil-wetted polyurethane foam proves highly effective for spaces burdened by heavy, large debris. Woodworking shops, where chunky sawdust quickly clogs pleated paper, benefit immensely from this approach. The tacky oil applied to the porous foam strands efficiently traps colliding dust before it reaches the intake manifold. Later, you can simply wash the DIY filter in a solvent, re-oil it, and reuse it indefinitely.
Adapting a larger automotive element to the small threaded port on a cylinder head requires a robust housing. Standard Schedule 40 plumbing PVC fittings provide an inexpensive, structurally rigid, and airtight solution. By combining PVC reducers, threaded nipples, and rubber couplers, fabricators can create a durable structure capable of withstanding heavy motor vibrations.
For extreme environments, industrial maintenance protocols inspire the creation of remote "snorkel" systems. Running a length of upsized PVC pipe from the compressor to an outside wall or a cleaner adjacent room allows the machine to draw in cooler, dust-free air. Adding a secondary filtration element at the end of this snorkel drastically extends the primary media's life and boosts the pump's overall thermal efficiency.
Understanding what not to do is equally as important as knowing what works. While improvising might seem tempting in a pinch, certain methods frequently lead to immediate equipment damage. The financial toll of a burned-out motor far outweighs the cost of proper materials.
Zip-tying a cotton sock, an old t-shirt, or a microfiber shop rag directly over the intake port is a catastrophic mistake. Woven textiles possess terrible air permeability. They severely restrict airflow, creating a massive vacuum on the intake stroke. Consequently, the starved electric motor draws higher amperage, causing the pump to run dangerously hot. Worse still, the intense suction can easily tear the fabric, pulling the rag directly into the reed valves and causing instant mechanical failure.
HEPA filters clean the air exceptionally well, capturing particles down to 0.3 microns. However, they are engineered for low-velocity fan systems. They are far too restrictive for the aggressive, high-velocity suction power of a standard piston pump. Installing such dense media creates an unacceptable pressure drop. This leads to elevated operating temperatures, drastically reduced output, and premature bearing wear.
With the accessibility of consumer 3D printing, many users attempt to print custom housings. Utilizing low-temperature thermoplastics like standard PLA is a critical error. The cylinder head of a hard-working machine can easily exceed 140°F (60°C), well past PLA's glass transition temperature. Radiant heat will quickly cause the housing to warp, melt, and lose its airtight seal. If you must 3D print components, high-temperature filaments like ABS, ASA, or Nylon are absolutely mandatory.
Building a functional and safe intake system requires precise measurements and careful assembly. Follow these empirical steps to ensure optimal performance without risking your machinery.
Before purchasing any materials, measure the threaded port on your cylinder head. Most models utilize standard NPT (National Pipe Thread) or G-thread dimensions, typically 3/8", 1/2", or 3/4". Next, identify your machine's maximum CFM output printed on the tank's specification plate. Your custom element must be rated for significantly more CFM than the pump actually produces—ideally 30% to 50% more to account for gradual clogging over time.
Once the thread size is verified, assemble the housing using Schedule 40 PVC. Thread a PVC male adapter into the head. From there, use a short length of straight pipe as a standoff, pushing the element away from the hot metal. Finally, use a PVC reducer fitting to match the wider diameter of your chosen automotive element. Ensure all slip joints are permanently bonded using standard PVC primer and cement to prevent vibration-induced separation.
The threaded connection at the cylinder head is a critical vulnerability point for vacuum leaks. Air will always take the path of least resistance. If fittings are loose, unfiltered dirty air will bypass the media entirely. Apply PTFE tape to the male threads of your PVC adapter, wrapping it tightly clockwise three to four times. Hand-tighten the assembly into the aluminum head, then use a wrench for one final quarter-turn, being careful not to over-torque and crack the casting.
After installation, perform an empirical restriction test. Drain the tank completely, turn the machine on, and listen closely to the motor. It should sound smooth and consistent. If the motor sounds like it is laboring, pitching down in tone, or struggling to maintain RPMs, the setup is too restrictive. Time how long it takes to fill from zero to maximum cut-off pressure. A significantly longer fill time compared to the manufacturer's baseline indicates severe airflow starvation.
A modified setup requires a far more proactive maintenance approach than standard factory equipment. Because homemade solutions often utilize non-standard materials and lack specialized pre-filtration baffles, establishing a strict monitoring protocol is necessary to keep your compressor air cleaner functioning optimally.
Unlike commercial units that might only need semi-annual replacement, custom setups require frequent observation. For heavy users operating in environments with high particulate loads, a weekly visual inspection is strongly recommended. Look for heavy dust accumulation on the outer pleats or darkening of the foam media. Establish a baseline schedule to physically remove and clean the element at least once a month under heavy use.
Pneumatic pumps generate intense, high-frequency vibrations. Over time, these vibrations can compromise the structural integrity of custom PVC or 3D-printed brackets. During your weekly visual inspections, closely examine the joints and the threaded connection for hairline cracks. Check that all hose clamps remain tight. Any structural failure will instantly result in abrasive dust bypassing your protection entirely.
While modifying your own equipment is a cost-effective project for occasional hobbyists, recent industry trends show a massive shift towards prioritizing high-efficiency, continuous-duty commercial setups. As modern pneumatic tools and CNC machinery demand tighter tolerances, workshops are recognizing that the financial toll of equipment downtime far outweighs the initial savings of a homemade fix. Furthermore, stricter occupational noise regulations are pushing facilities to adopt filtration systems that double as heavy-duty silencers.

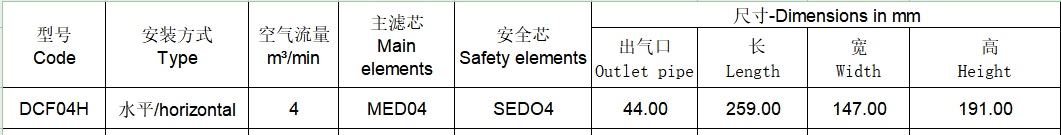

In high-stakes environments, engineered commercial solutions are non-negotiable. Industrial-grade setups offer guaranteed micron capture ratings, precise CFM matching, and heavy-duty metal housings immune to the melting and vibration degradation that plague DIY plastic assemblies. For instance, professional units like the Sykingtech DCF series air filters integrate all these advanced parameters. They feature robust carbon steel or aluminum alloy housings, precise G/NPT thread compatibility (from 3/8" up to large industrial sizes), and high-efficiency paper or polyester media capturing particles down to the 2-5 micron range while handling operating temperatures up to 100°C.
| Feature | DIY PVC & Auto Filter Setup | Commercial (e.g., Sykingtech DCF Series) |
|---|---|---|
| Housing Durability | Prone to cracking from vibration and melting from cylinder head heat (especially 3D printed parts). | Carbon steel or aluminum alloy; immune to extreme heat and high-frequency vibrations. |
| Filtration Precision | Variable (often 20-30 microns); depends heavily on the repurposed automotive filter. | Engineered precision (typically 2-10 microns) protecting delicate reed valves and tight-tolerance air tools. |
| Noise Reduction | Minimal to none; PVC pipe can sometimes amplify intake roar. | Built-in silencer capabilities; significantly reduces decibel output for compliance with shop noise limits. |
| Airflow & CFM | Requires guesswork; risk of starving the motor if improperly sized. | Scientifically flow-tested; guarantees zero volumetric efficiency loss when matched to the pump. |
If your application demands continuous duty cycles or operates in severe industrial conditions, upgrading to a professional-grade compressor intake filter is the safest and most economical decision in the long run. Investing in commercial-grade units ensures absolute reliability and protects the substantial capital investment of your entire air system.
Constructing a custom intake system can be a highly rewarding endeavor that, when executed correctly, outperforms cheap factory plastic housings. By prioritizing maximum airflow and selecting robust materials like pleated automotive paper or oiled foam, you can significantly extend the life of your pump.
However, it is crucial to avoid restrictive fabrics, low-temperature plastics, and dense HVAC media that will inevitably starve and overheat the motor. Take a moment today to inspect your current setup for cracks, leaks, or severe clogging. If the risks of improvising seem too high for your valuable equipment, or if your shop demands continuous, quiet, and reliable operation, pivoting to engineered filtration is the smartest move. We highly recommend exploring professional solutions like the DCF series from Sykingtech to guarantee years of flawless, high-efficiency pneumatic operation.
Absolutely not. Even operating for a few minutes without filtration can draw in ambient dust and micro-abrasives. These particles will permanently score the internal cylinder walls, degrade the piston rings, and ruin the delicate reed valves, rapidly leading to a total loss of compression.
Repurposed automotive paper elements or oiled foam sponges offer the best combination of particulate trapping and high volumetric airflow. They are specifically designed to handle high CFM demands without starving the pump, making them vastly superior to household fabrics or standard HVAC filters.
This heavily depends on your specific environment. In a dusty woodshop or sandblasting bay, you should inspect the media weekly and clean or replace it monthly. In contrast, for a relatively clean residential garage, inspecting and cleaning it every three to six months is generally sufficient.
Yes. If the filtration media is too dense—such as a HEPA filter or a shop rag—the motor has to work significantly harder to pull in the required air. This excessive vacuum leads to severe overheating, extended cycle times, increased electrical draw, and ultimately, premature motor or pump failure.
The most common signs of a clogged filter include a noticeable increase in the time it takes to fill the tank from zero to maximum pressure, the motor sounding like it is laboring or running hotter than usual, and a drop in overall CFM output at your air tools. A visual inspection showing heavy, caked-on dust deep in the pleats also confirms it is time for a replacement.
Yes, a properly designed intake filter acts as a muffler for the pump. The aggressive suction of air into the cylinder creates a loud, rhythmic intake roar. While DIY setups rarely dampen this sound, commercial-grade filters are specifically engineered with built-in silencer chambers to significantly reduce the decibel level in your workspace.
