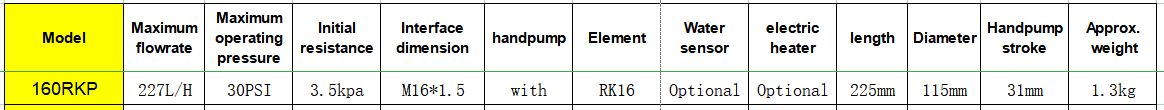

160RKP
FILRUISON
How it works:
The Diesel fuel filter/water separators have three filtration stages:
1st stage: separation
In this stage the water and superior solids to 30 microns are separated of the fuel by gravity/centrifugal force and decants to the bottom of the transparent collector bowl.
2nd stage: coalescing
The smaller water droplets condense on the inner wall of the bowl and the surface of the filter element. The authorities receive a certain amount of weight and will decant to the bottom of the collection bowl.
3rd stage: filtration by the water repelling media
In this stage the filter media retained the rest of the water and solids contaminants of 10 to 30 microns, according to the used element that made by water repelling media.
Filter element
The filter element is compounded of supper fiber and resin which treated by special methods. The water can not only pass, or even adhere.
The end cover distinguishes the filter grades in different colors, the red is 30μm, the blue is 10μm filter
The original FILRUISON-RAMA filter covers are rust - proof material
Easy to replace filter elements，maintenance simple.
