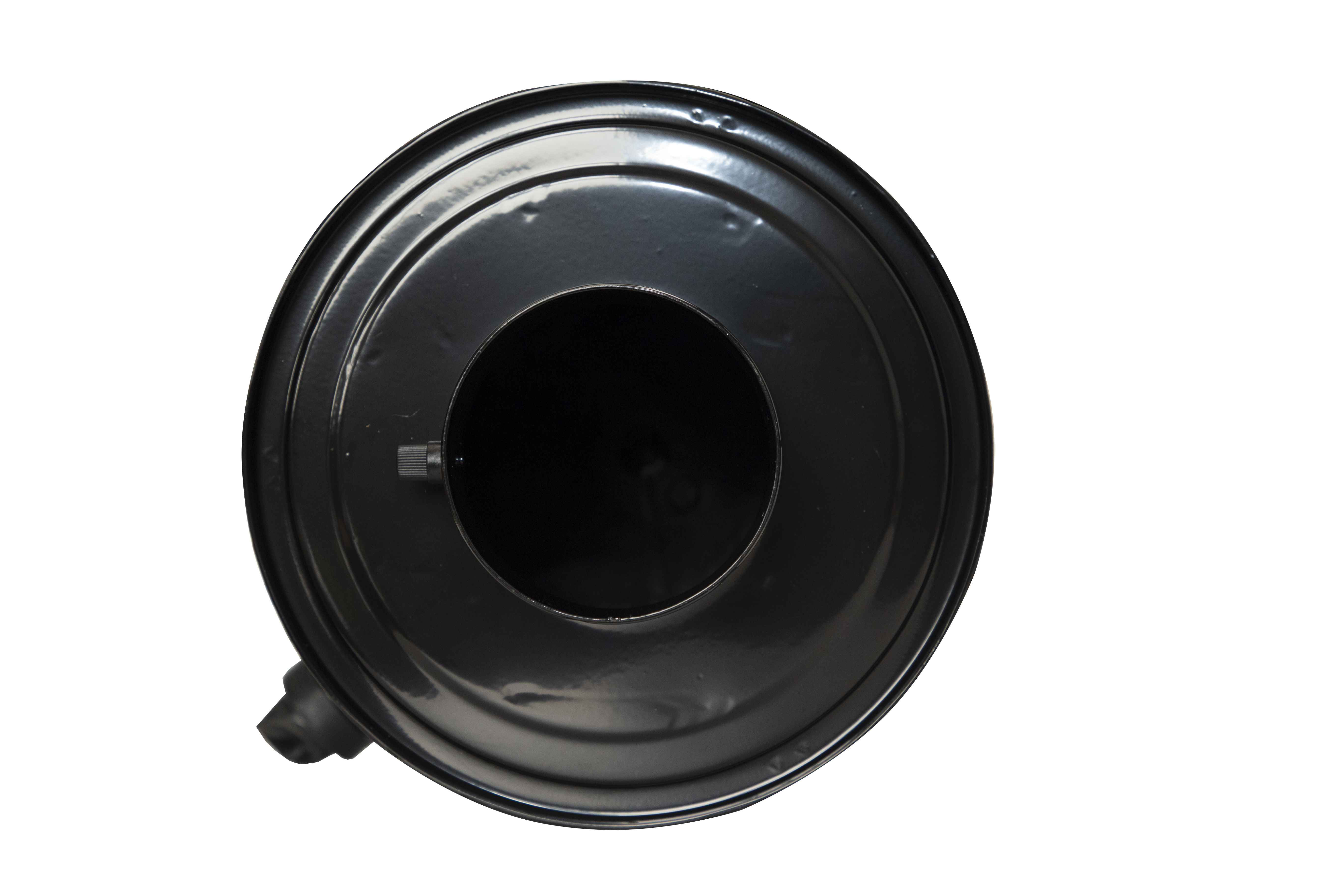

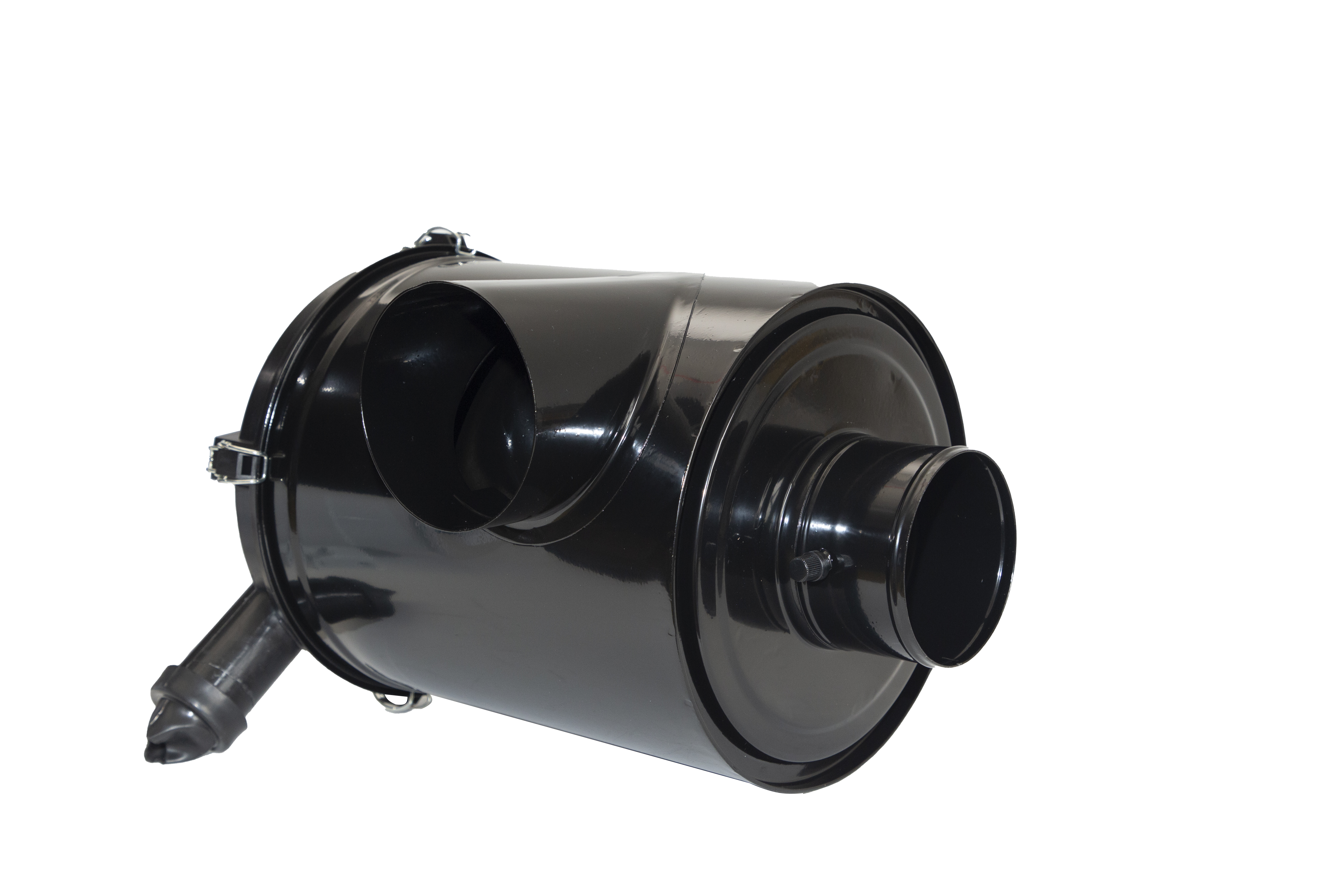

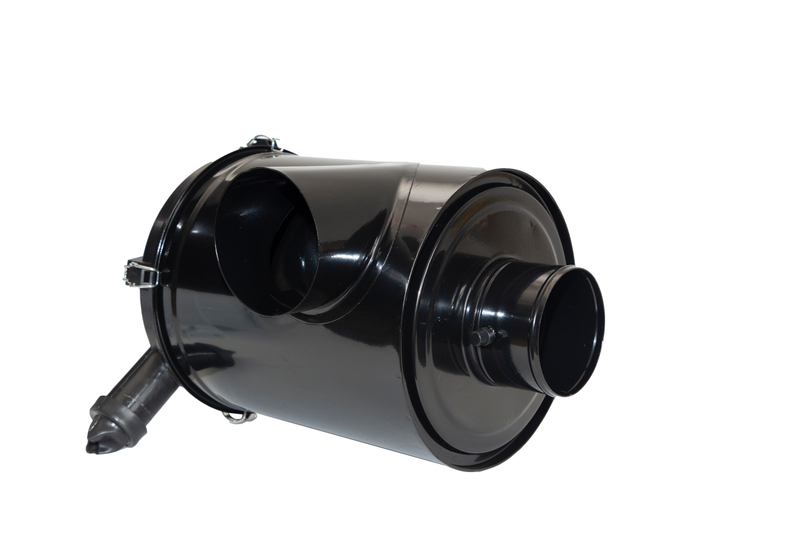

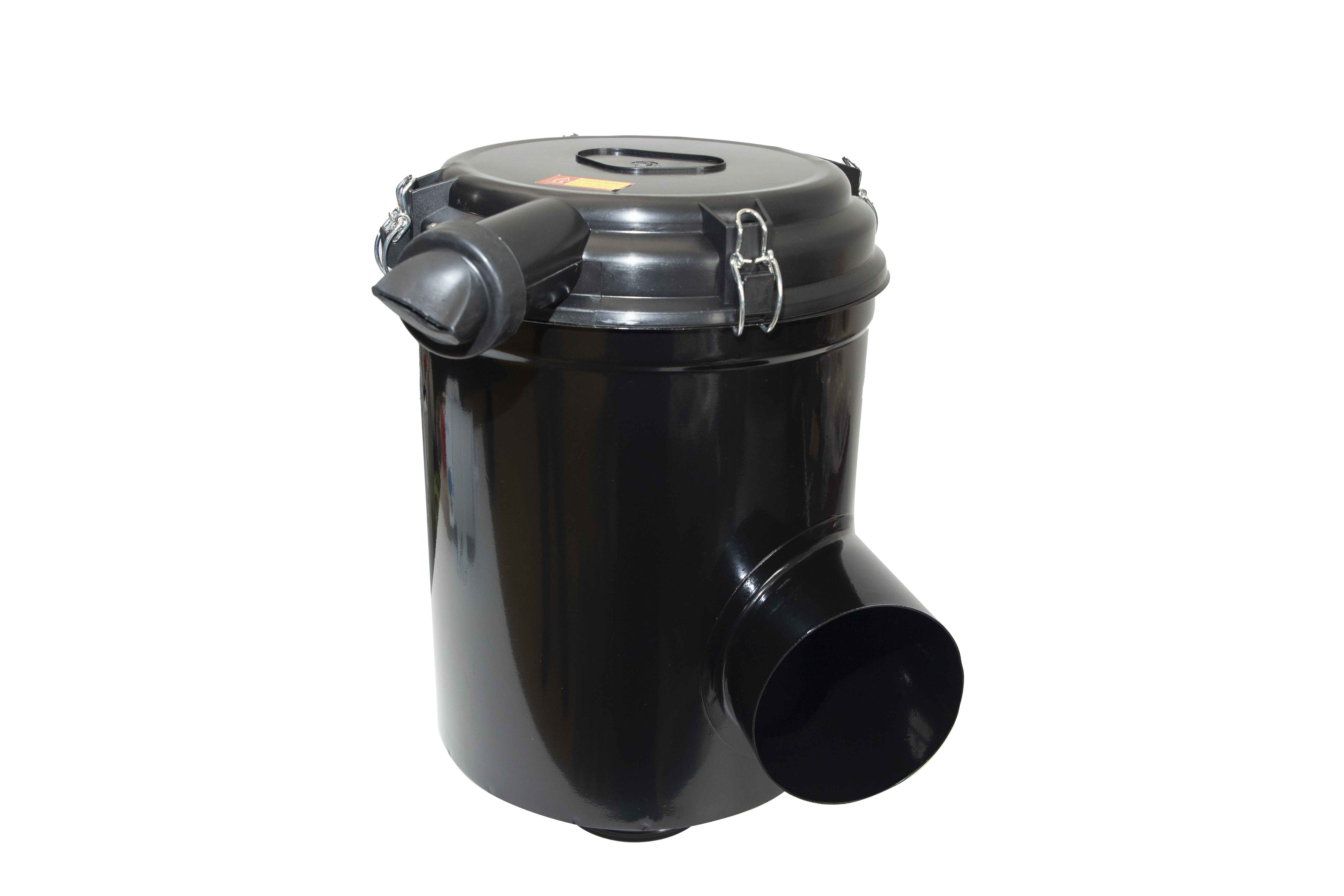

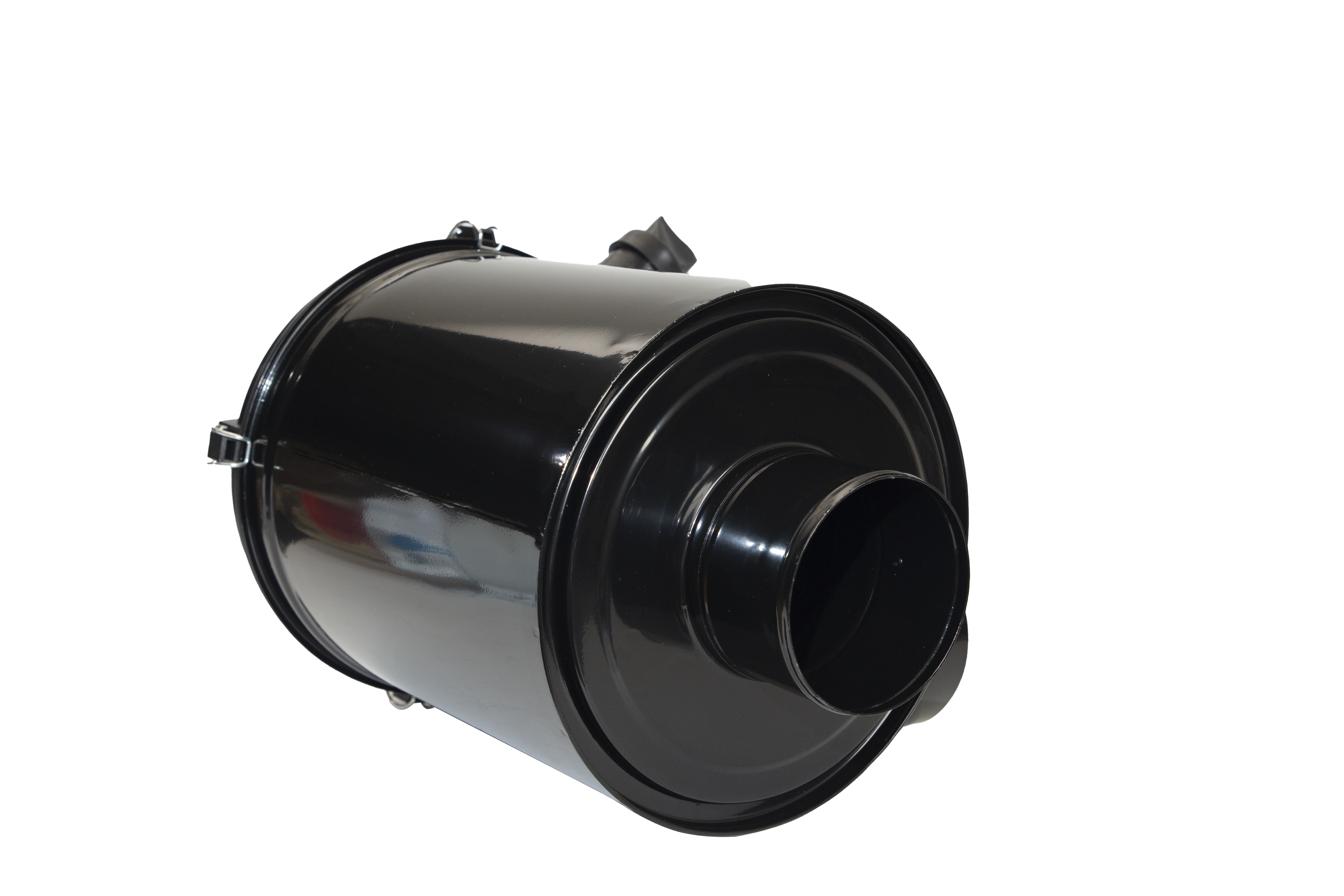

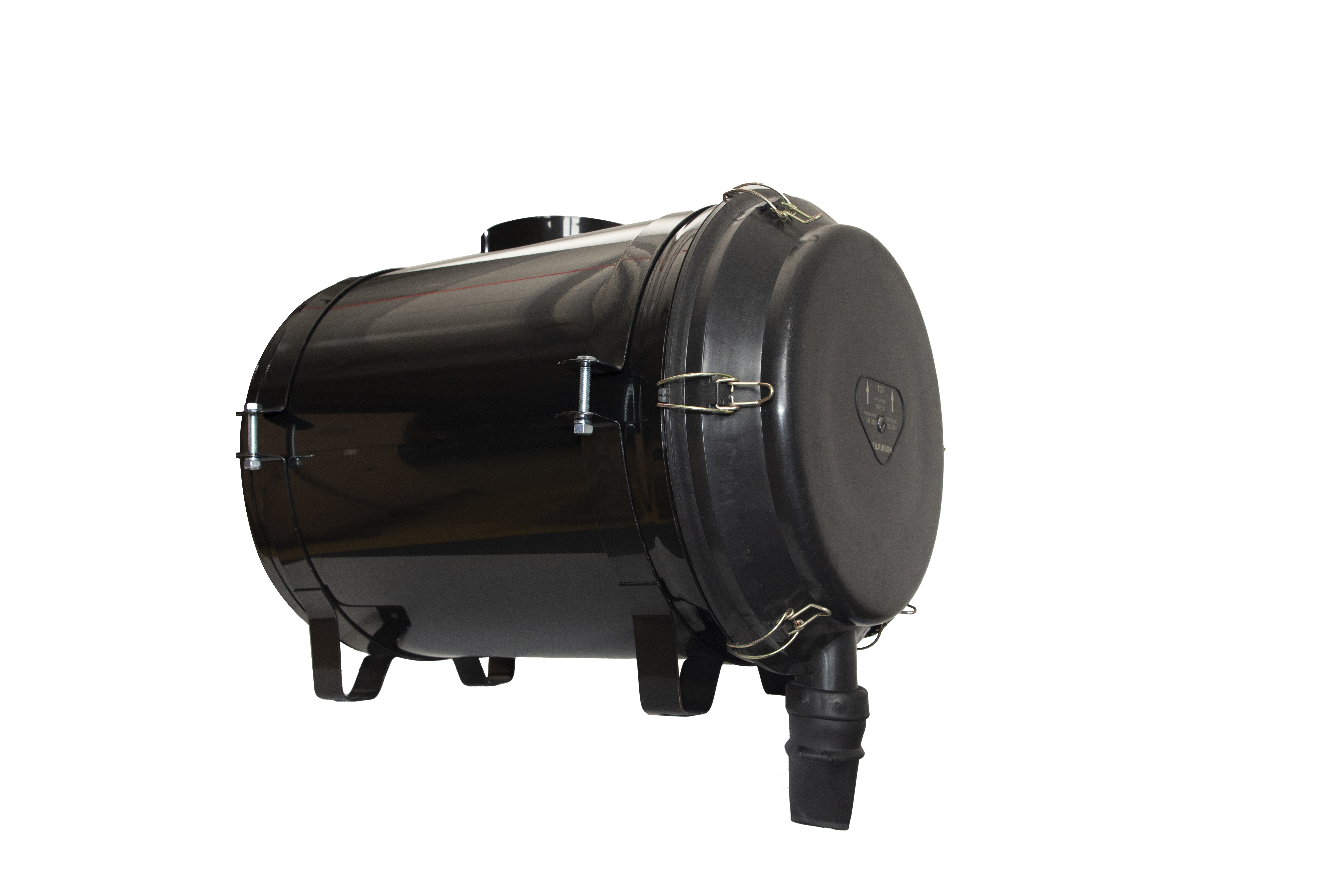

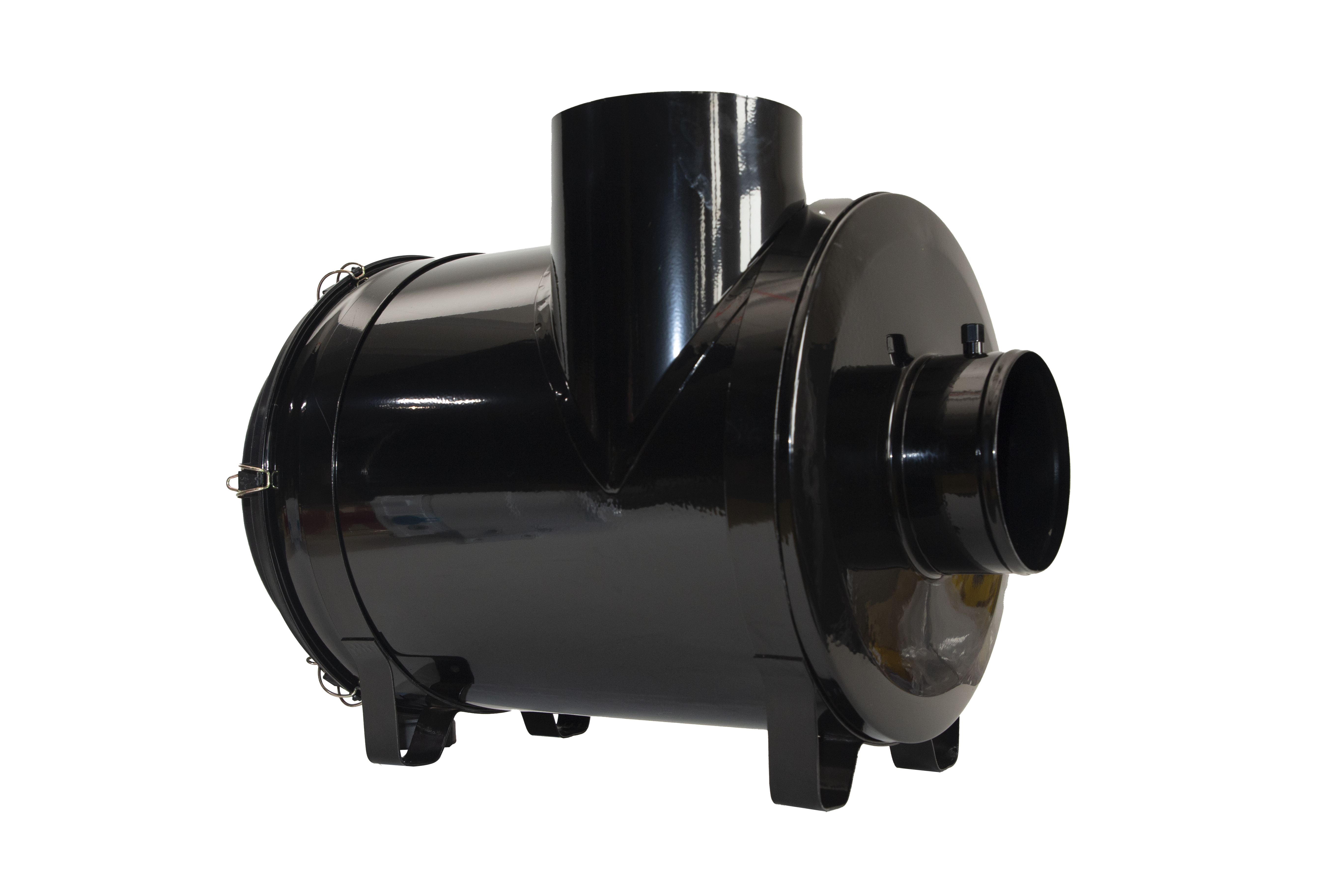

Radial seal 40~48m3/min Air Filter for grain and seed cleaning

How it works:

Air flows in housing to spin. Centrifugal force separates the heaviest impurities from the air stream. These contaminants are discharged through an integral evacuator valve. Only purified air flows to the air filter elements (primary and safety stages of filtration). These elements retain the 99.99% of the contaminants which were not eliminated in the first stage. Then clean air flows to the engine or air compressor.

Advantages:

Up to 99.99% filtration efficiency

Metal shell, anti-collision plastic end cover, less weight

Radial seal elements easily on and off the outlet tube, no tools required

Long life, low pressure drop, durability,low temperature resistance

Restriction indicator port is standardSuitable for installing air pre-cleaner

Filter element:

Special FILRUISON filter medium with continuous internal mechanism change, supper dust capacity and perfect filtration efficiency

Stable pleat forming to prevent wrinkles from deforming or bonding under harsh conditions

The top polyurethane sealing ring fits to the housing for reliable sealing

Long life, low pressure drop, durability
