Quick Answer: While a standard air conditioner mesh filter provides basic large-particle capture, it compromises essential fine filtration in heavy-duty environments. Industrial centrifugal systems resolve this limitation by utilizing pre-dust separation and multi-layer filtration to handle high dust loads without rapid clogging. This article supports procurement managers and technical evaluators in comparing the operational trade-offs between basic reusable mesh and advanced centrifugal systems, enabling evidence-based procurement decisions for severe environmental applications.
Key Takeaways:
When outfitting equipment for industrial operations, selecting the appropriate air filtration mechanism is critical for both machinery protection and operator safety. Standard washable mesh filters are widely recognized for their simplicity and reusability, serving as the baseline defense in many standard commercial applications. They operate by physically blocking larger airborne debris through a woven or extruded grid. Conversely, industrial centrifugal systems represent a more complex, multi-stage approach designed specifically for severe environments. These systems actively separate particulate matter using rotational force before passing the air through secondary fine filtration media. Evaluating these two approaches requires comparing their shared operational dimensions—specifically their particle capture efficiency, maintenance demands, and ability to manage airflow under heavy dust loads. For procurement teams, understanding these mechanical differences is the first step in calculating the true total cost of ownership and preventing costly equipment downtime.
The primary appeal of a standard air conditioner mesh filter lies in its straightforward design and low initial procurement cost. In light-duty environments, such as standard office buildings, clean manufacturing facilities, or basic commercial spaces, these filters adequately capture large airborne debris like lint, hair, and large dust particles. However, when deployed in heavy-duty industrial settings—such as mining, construction, agricultural processing, or rail transit—the operational demands quickly exceed the physical capabilities of standard HVAC mesh.
The fundamental limitation of a basic mesh filter is its strict reliance on a single-stage, physical barrier. The filter's effectiveness is entirely dependent on the size of its apertures. If the mesh is woven tightly enough to capture fine dust, it restricts airflow from the outset and clogs rapidly as particulates accumulate. If the mesh is woven loosely to maintain necessary airflow, it allows hazardous fine particulates to bypass the filter entirely. In environments with high concentrations of airborne particulate matter, this creates an unavoidable compromise between airflow maintenance and filtration efficiency.
When an air conditioner filter is subjected to a heavy dust load, the surface area becomes occluded in a matter of hours or days. This occlusion creates a severe pressure drop across the filter media. The HVAC or air intake system must then work significantly harder to pull air through the restricted barrier. This dynamic leads to increased energy consumption, severe motor strain, elevated operating temperatures, and a dangerous reduction in overall cabin or equipment air quality. In heavy machinery, a starved air intake can cascade into broader mechanical inefficiencies.
Important limitation: Standard mesh filters are insufficient for heavy-duty fine filtration due to the following structural constraints:
Because single-stage mesh filters cannot sustain performance under heavy particulate loads, industrial applications require a structural upgrade to multi-stage filtration. Advanced systems abandon the reliance on a single physical barrier, instead utilizing mechanical forces to separate dust before it ever reaches a traditional filter medium. This shift from passive blocking to active separation defines the modern approach to heavy-duty air quality management.

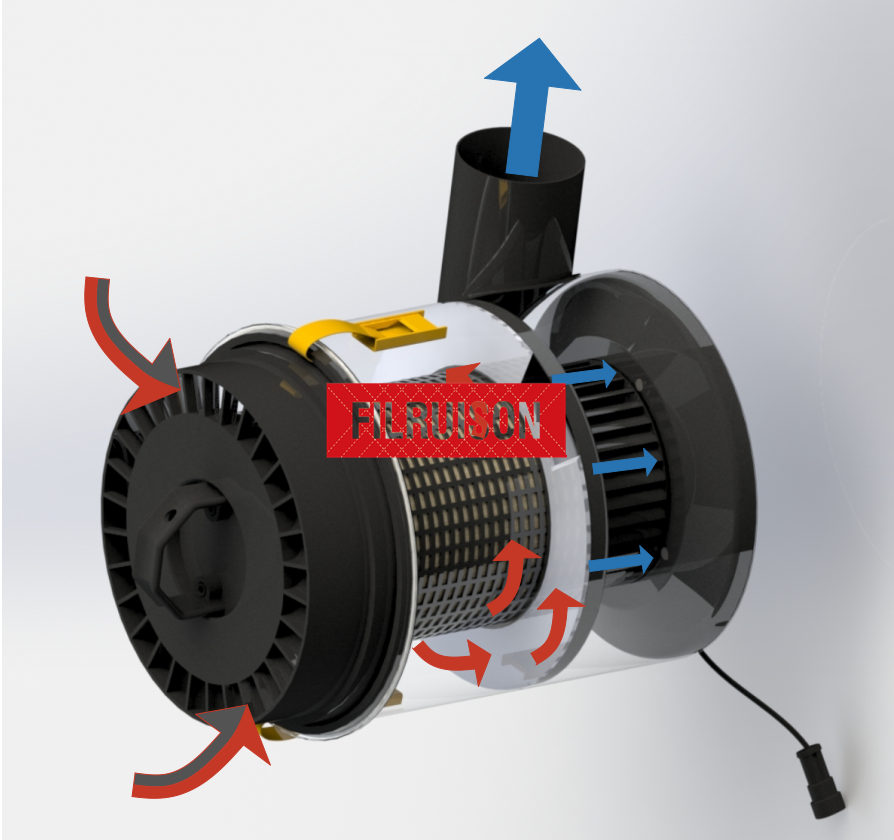

Shanghai SYKING Industry Technical co.,Ltd. engineers solutions specifically designed to overcome the limitations of basic mesh in severe environments. For example, the Intelligent Cabin Overpressure Air Filtration Unit utilizes a sophisticated two-stage process to ensure continuous clean air delivery. The first stage employs vortex centrifugal pre-dust separation. As heavily contaminated air enters the unit, it is forced into a rapid rotational spin. The centrifugal force drives the heavier dust particles outward, separating them from the main airstream and expelling them before they can clog the internal components.
Following this initial separation, the pre-cleaned air passes through a multi-layer fine filtration system. Because the bulk of the heavy dust has already been removed by the vortex stage, these fine layers can be engineered with much tighter tolerances than a standard washable mesh filter. This multi-layer approach allows the unit to effectively trap microscopic contaminants, including PM2.5, pollen, and virus aerosols, which would easily pass through a basic woven screen.
Designed for seamless integration into heavy machinery and industrial vehicles, these advanced units operate on a DC24-48V power supply, ensuring compatibility with standard industrial electrical systems without requiring complex voltage converters. By combining centrifugal separation with multi-layer fine filtration, these industrial alternatives provide continuous, high-efficiency air purification without the rapid degradation in performance characteristic of standard mesh filters.
Understanding the structural differences between these technologies provides the foundation for a direct operational comparison. For procurement managers and technical evaluators, the choice between a reusable air filter and a centrifugal system ultimately comes down to evaluating maintenance requirements, pressure control capabilities, and long-term operational stability under duress.
| Operational Feature | Standard Reusable Mesh Filter | SYKING Centrifugal System (with CCU) |
|---|---|---|
| Primary Mechanism | Physical barrier (single-stage direct interception) | Vortex centrifugal separation + multi-layer fine filtration |
| Fine Particulate Capture | Limited (bypasses fine dust and aerosols) | Traps PM2.5, pollen, and virus aerosols |
| Pressure Control | None (static airflow restriction as filter clogs) | Automatic fan speed adjustment based on real-time pressure |
| Maintenance Requirement | Frequent manual washing and visual inspection | Extended intervals due to pre-dust separation |
| Operating Modes | N/A (Passive component) | Manual, Off, and Automatic modes |
The most significant operational divergence between the two systems is how they manage internal air pressure within an enclosed space. A standard mesh filter is a strictly passive component; as it clogs with debris, airflow decreases, and internal cabin pressure drops. In a heavy machinery cabin, a drop in positive pressure is dangerous because it allows contaminated outside air to leak into the operator environment through unsealed gaps around doors, windows, and control levers.
In contrast, advanced centrifugal systems actively manage environmental conditions to protect the operator. The SYKING Intelligent Cabin Overpressure Air Filtration Unit is governed by a sophisticated CCU controller that features Manual, Off, and Automatic operating modes. In Automatic mode, the controller dynamically adjusts the fan speed based on real-time pressure differences between the inside and outside of the cabin.
When the pressure difference is between 0-80Pa, the fan operates at 100% capacity to ensure adequate clean air delivery and maintain the positive pressure necessary to keep external dust out. However, the system is also designed to protect itself and the cabin structure from abnormal conditions; if the pressure difference exceeds 200Pa, the controller automatically stops the fan. This level of automated, dynamic response ensures consistent environmental safety and is impossible to achieve with a passive reusable mesh filter.
The operational advantages of centrifugal systems—specifically their extended maintenance intervals and sustained airflow—are heavily dependent on the efficiency of their pre-filtration stage. In heavy dust environments, the goal of pre-filtration is not to purify the air completely, but to manage the bulk particulate load, thereby protecting the downstream fine filtration media from immediate occlusion.
Integrating a PC series air pre-cleaner into an industrial HVAC system fundamentally changes the maintenance lifecycle of the equipment. By utilizing centrifugal force or directional airflow changes, a pre-cleaner separates the largest and heaviest particles—such as sand, heavy soil, metallic shavings, and large debris—from the intake air. This bulk material is continuously ejected from the system, meaning it never accumulates on a filter surface.
When a pre-cleaner handles the majority of the particulate mass, the primary fine filtration layers are only tasked with capturing the remaining microscopic dust. This division of labor prevents the rapid occlusion that plagues single-stage mesh filters. While pre-filtration does not eliminate maintenance entirely—the fine filtration layers will eventually require replacement as they capture microscopic aerosols—it significantly extends the operational lifespan of those layers. In severe environments, a system equipped with robust pre-dust separation can operate continuously for extended periods, whereas a system relying solely on a primary mesh filter might require daily intervention to maintain acceptable airflow and prevent motor burnout.
Translating these technical and operational comparisons into a procurement decision requires assessing the specific severity of the deployment environment. Buyers must evaluate the anticipated dust load, the criticality of continuous operation, and the specific air quality requirements of the application to determine if a basic mesh filter will suffice or if an industrial centrifugal system is required.
For light-duty commercial applications where the primary contaminants are large, low-density particles (like lint or standard indoor dust), a standard washable mesh filter may provide sufficient protection and acceptable maintenance intervals. However, as the environmental severity increases, the operational compromises of basic mesh become unacceptable risks that can lead to equipment failure and operator health hazards.
Heavy-duty applications necessitate the advanced capabilities of centrifugal and multi-layer units. For example, SYKING provided filtration products for a key CREC Group rail transit project. Rail transit track construction and maintenance environments generate immense volumes of heavy, abrasive dust, including ballast particulate and metallic dust. In such scenarios, a basic mesh filter would clog rapidly, leading to equipment overheating and exposing operators to hazardous particulates. The deployment of advanced filtration units in this CREC Group project demonstrates the necessity of robust pre-dust separation and multi-layer fine filtration in maintaining operational safety and efficiency under extreme conditions.
When evaluating filtration options for heavy-duty environments, procurement teams should consider the following criteria:
A standard washable mesh filter is generally effective at capturing large airborne debris, such as lint, hair, and large dust particles (typically 10 microns and larger). Because they rely on a single physical barrier with fixed apertures, they are not designed to capture fine microscopic dust, which easily bypasses the mesh and enters the downstream environment.
Centrifugal pre-cleaners improve overall efficiency by removing the bulk of heavy particulate matter from the airstream before it reaches the primary filter. By spinning the air and ejecting heavy dust outward, the pre-cleaner prevents the rapid clogging that causes severe pressure drops in standard mesh filters, allowing the downstream fine filtration layers to operate at peak efficiency for much longer periods.
No, standard washable mesh filters cannot reliably trap PM2.5, pollen, or virus aerosols. Capturing these microscopic contaminants requires specialized multi-layer fine filtration media, such as those found in advanced cabin overpressure units, which are engineered with much tighter tolerances than basic woven mesh.
While multi-layer fine filtration units require significantly less frequent maintenance than basic mesh filters—thanks to the protection offered by centrifugal pre-dust separation—they are not entirely maintenance-free. The fine filtration layers will eventually accumulate microscopic particulates and require periodic replacement to ensure the system continues to effectively trap PM2.5 and other aerosols without restricting airflow.
***
Request specification confirmation or a scenario assessment for the Intelligent Cabin Overpressure Air Filtration Unit to evaluate its fit for your heavy-duty environment.
