Quick Answer: Adding passive filters to standard air registers in heavy machinery cabins often creates unnecessary airflow restriction and pressure drops, compromising both equipment performance and operator safety. To overcome this, industrial operators must upgrade to active overpressure systems. These engineered solutions utilize dynamic CCU controllers to adjust fan speeds based on real-time pressure differentials, maintaining safe positive pressure without restricting airflow. This guide compares passive and active filtration methods to help procurement and technical teams evaluate the right system for enclosed industrial cabins.
Key Takeaways:
Heavy machinery operates in some of the most particulate-heavy environments in the industrial sector, including mining, construction, and agricultural sites. Protecting the equipment operator requires maintaining exceptional indoor air quality within the enclosed cabin. However, attempting to achieve this by retrofitting existing air intakes with passive filtration media introduces a severe mechanical conflict: airflow restriction.
When a basic filtered air register is installed in a high-dust environment, it relies entirely on the cabin’s existing blower motor to pull or push air through the filter media. These existing motors are typically engineered for thermal management and operate on fixed performance curves designed for minimal static pressure resistance. Adding a standard HVAC vent filter immediately introduces a physical barrier that the static fan struggles to overcome. As the machinery operates and the filter begins to capture airborne particulate matter, the resistance across the filter face increases exponentially. Because the static fan cannot dynamically increase its power output to compensate for this growing resistance, the volume of air entering the cabin plummets.
This reduction in airflow eliminates the cabin's ability to maintain positive pressure. Positive pressure is the primary defense mechanism against environmental dust; it ensures that air constantly leaks out of microscopic gaps in the cabin sealing, preventing hazardous particulates from seeping in. When passive filters restrict incoming airflow, the internal pressure drops to neutral or negative levels. This pressure failure draws contaminated air directly into the operator's breathing zone through unsealed gaps, completely defeating the purpose of the filtration upgrade and leaving the operator exposed to hazardous environmental conditions.
Important limitation: Passive system pressure drops
Resolving the airflow restriction challenge requires moving away from static, passive barriers and adopting engineered mechanical solutions. Evaluating the right approach involves understanding the fundamental differences in how passive and active systems manage airflow, pressure, and particulate loads in heavy machinery applications.
Passive systems function strictly as physical obstacles in the airstream. They do not generate their own airflow; they only impede it. Conversely, active overpressure systems decouple the filtration process from the existing cabin blower. They introduce dedicated, variable-speed pressurization fans designed specifically to force clean air into the cabin, overcoming filter resistance through mechanical power and intelligent control.
The core failure point of passive systems in heavy machinery is their lack of dynamic adaptability. When a register grille filter is applied to a standard intake, the system operates blindly. It cannot detect that the filter is loading with dust, nor can it adjust its performance to maintain a consistent volume of clean air. The static pressure resistance simply builds until the airflow is choked off completely. This static restriction means that even if the filter media is highly efficient at capturing dust initially, it will inevitably fail to maintain the necessary environmental conditions inside the cabin over a full operational shift, rendering it an inadequate solution for industrial applications.
Active systems solve the restriction problem by generating their own regulated airflow independent of the machinery's standard HVAC blower. Rather than relying on a fixed-speed fan, these systems utilize intelligent controllers to monitor the environment and adjust the fan's rotational speed automatically. While blowing clean air into the cabin, the active system realizes supercharging and maintains pressure functions automatically. This dynamic scaling ensures that as the filter media captures dust and its natural resistance increases, the system simply increases fan output to push through the resistance, maintaining a constant, protective positive pressure environment without sacrificing indoor air quality.
| Feature | Passive Air Registers | Active Overpressure Systems |
|---|---|---|
| Airflow Maintenance | Degrades rapidly as particulate matter accumulates on the filter media. | Maintained consistently through dynamic, variable-speed fan adjustments. |
| Pressure Stability | Fails to maintain positive pressure, allowing hazardous dust ingress. | Actively monitors and maintains safe positive pressure thresholds. |
| Dust Load Capacity | Low; relies solely on the surface area of the fine filter media. | High; often integrated with mechanical pre-separation technologies. |
| Fan Control | Static; relies entirely on existing, non-adjustable cabin blower motors. | Dynamic; utilizes dedicated controllers to scale output based on real-time resistance. |
The operational advantage of active overpressure systems relies on precise electronic management. Unlike standard air registers with filters that offer no operational feedback, active systems utilize a Central Control Unit (CCU) to dictate fan behavior based on real-time environmental data. This controller acts as the brain of the filtration unit, preventing the airflow restriction that plagues passive setups by constantly adapting to the physical realities of the filter's condition.
Manufacturers specializing in industrial filtration, such as Shanghai SYKING Industry Technical co.,Ltd., engineer these controllers to operate within strict, predefined pressure parameters. For example, the Intelligent Cabin Overpressure Air Filtration Unit utilizes a CCU that automatically controls the speed of rotation in a preset system. The controller continuously monitors the pressure difference between the inside of the cabin and the outside environment, ensuring the system responds instantly to any changes in cabin sealing or filter resistance.
When the pressure difference between the inside and outside is between 0-80Pa, the CCU commands the fan speed to run at 100% capacity. This maximum output is critical during initial system startup to rapidly pressurize the cabin, or when compensating for sudden pressure losses, such as an operator opening a door. It is also essential when a heavily loaded filter requires maximum force to push air through. By running at 100% capacity in this low-pressure range, the system guarantees that airflow restriction does not compromise the cabin's protective seal, realizing the necessary supercharging function.
Equally important is the controller's safety protocol. If the system were to continuously pump air without a limit, it could create dangerous overpressure conditions, making cabin doors difficult to open or damaging window seals. To prevent this, the CCU is programmed with a hard safety cutoff. When the internal pressure difference exceeds 200Pa, the fan automatically stops. This dynamic scaling—running at full power when pressure is needed and stopping when safe limits are exceeded—ensures that the cabin remains perfectly pressurized, entirely circumventing the static restriction problems of passive filters.
While the CCU manages pressure and airflow dynamically, heavy machinery environments present dust loads so extreme that even active fans would eventually be overwhelmed if forced to push air through rapidly blinding fine filters. To maintain airflow and prevent the system from constantly running at maximum capacity to overcome resistance, active overpressure units incorporate mechanical pre-separation technologies. This dual approach ensures long-term sustainability in the field.

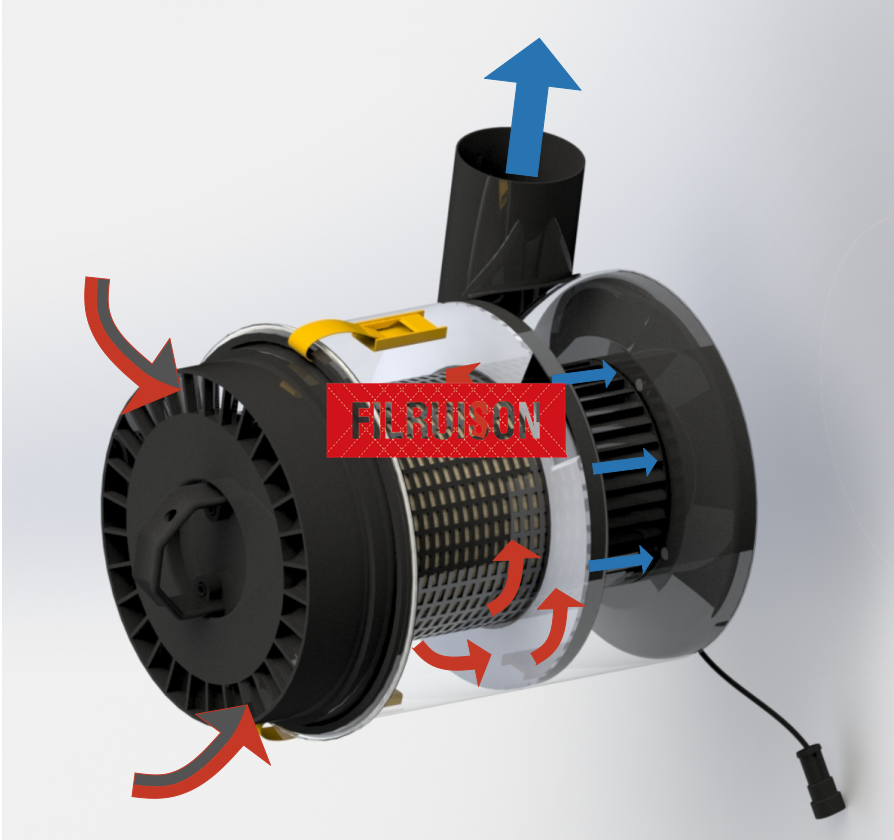

The most effective method for reducing the burden on fine filter media is vortex centrifugal pre-dust separation. In this mechanical process, dirty environmental air does not flow directly into a flat filter face. Instead, dirty air enters through the vortex intake of the ring distribution on the filter end cover, which forms a high-velocity vortex. This specific geometric design forces the incoming air to spin rapidly before it ever reaches the delicate filtration media.
As the air spins, centrifugal force acts upon the particulate matter suspended within it. Because heavy dust particles have greater mass and inertia than the air itself, the centrifugal force by the vortex initially separates the dust, driving it outward and away from the center of the airstream. This action ejects the heavy particulate matter, mechanically removing the bulk of the heavy dust load before it can cause any airflow restriction.
By mechanically removing the largest particulates, the vortex centrifugal pre-dust separation ensures that only the finest particulates proceed to the next stage. The system then utilizes multi-layer fine filtration to trap PM2.5, pollen, and virus aerosols. Because the heavy dust has already been separated, these fine filters load at a fraction of the speed they would in a passive system. This drastically extends the operational life of the filter media, reduces the static pressure resistance the active fan must overcome, and ensures that the CCU can maintain optimal cabin pressure with maximum efficiency.
Transitioning from inadequate passive filtration to an engineered active overpressure system requires careful evaluation of machinery specifications and manufacturer capabilities. Procurement managers and technical evaluators must ensure that the chosen active system integrates seamlessly with the heavy machinery's existing electrical architecture and operational demands, providing a true smart upgrade rather than a complex retrofitting burden.
A primary evaluation criterion is the power supply compatibility. Heavy machinery, including mining excavators, agricultural tractors, and construction loaders, typically operates on specific direct current voltages. Evaluators must specify filtration units that match these requirements without necessitating complex electrical conversions that could introduce new points of failure. For instance, engineered solutions like SYKING's active units are designed to operate on a standard DC24-48V power supply, ensuring direct compatibility with the heavy-duty alternators and battery banks standard in industrial fleets.
Furthermore, the reliability of the active system is heavily dependent on the engineering pedigree of the manufacturer. Active pressure control and vortex aerodynamics require precise manufacturing tolerances that cannot be achieved through makeshift upgrades. Evaluators should prioritize partnering with manufacturers possessing deep historical expertise in industrial filtration. SYKING, for example, has 45 years of experience in the industry, having produced their first set of precleaners in 1975. This decades-long commitment to industrial solutions ensures that the active overpressure systems are built to withstand the severe vibration, temperature fluctuations, and dust loads inherent to heavy machinery operations.
To determine the appropriate active filtration upgrade for your heavy machinery, contact SYKING to request specification confirmation and a scenario assessment for the Intelligent Cabin Overpressure Air Filtration Unit.
A Central Control Unit (CCU) prevents restriction by dynamically scaling the system's fan speed based on real-time pressure differentials. Rather than relying on a static fan that loses airflow as filter resistance increases, the CCU automatically increases fan output to push through the resistance, ensuring a consistent volume of clean air enters the cabin to maintain positive pressure.
Vortex centrifugal pre-dust separation is a mechanical process where incoming dirty air enters through a specialized vortex intake on the filter end cover. The resulting centrifugal force ejects heavy particulate matter outward and away from the airstream, separating the bulk of the dust before it can reach and restrict the multi-layer fine filter media.
In engineered systems like those manufactured by SYKING, the CCU is programmed with strict safety thresholds to prevent structural damage to the cabin. The active cabin fan automatically stops when the pressure difference between the inside of the cabin and the outside environment exceeds 200Pa, preventing dangerous overpressure conditions.
Passive filters rely entirely on existing cabin airflow, which inevitably drops as the filter clogs with industrial dust, leading to a loss of protective positive pressure. Active filtration systems are preferred because they generate their own regulated airflow, utilizing dynamic fan control and pre-separation to maintain a safe, consistent positive pressure environment regardless of the external dust load.
