Air Filter Assembly Accessories: Ensuring a Secure System Fit

Quick Answer: Achieving a secure and reliable fit for an air filtration system requires matching accessory materials and monitoring tools to the specific environmental and electrical limits of the equipment. Selecting the correct external protection, such as PLA or ME rain caps, and integrating precisely calibrated service indicators ensures system integrity. This guide supports technical evaluators and procurement managers in finalizing accessory specifications to prevent premature filter failure and maintain optimal industrial performance.

Key Takeaways:

• System integrity depends on selecting accessories that match the physical and environmental demands of the operating environment.
• Rain caps must be specified by material—PLA (plastic) for standard applications or ME (metal) for environments requiring high physical durability.
• Service indicators must operate strictly within a temperature range of -30 ℃ to 100 ℃ to provide accurate contamination data.
• Electrical service switches are constrained to a maximum working voltage of 24V and a maximum current of 0.25A.
• Proper physical integration of these accessories prevents bypass air and moisture ingress, protecting the primary filtration unit.

The Role of Accessories in System Integrity

Maintaining the integrity of an industrial air filtration system extends beyond the primary filter element. The surrounding assembly accessories are responsible for sealing the system against environmental hazards, managing air intake quality, and providing real-time performance data. While light-duty engines may rely on a standard carburetor air filter adapter for basic intake routing, heavy-duty industrial systems require robust, purpose-built assembly accessories to ensure a secure fit under extreme operational stress.

A primary filter can only perform to its rated capacity if the external accessories prevent premature loading and bypass air. If an inlet is left unprotected, bulk water and large debris can overwhelm the primary media, leading to rapid restriction and potential engine or compressor damage. Similarly, without accurate monitoring accessories, operators lack the data required to perform maintenance at the optimal time, risking either premature filter replacement or dangerous levels of air starvation.

Shanghai SYKING Industry Technical co.,Ltd. has 45 years of experience in addressing these exact filtration challenges, having produced its first pre-cleaner in 1975. This decades-long focus on heavy-duty filtration underscores the critical engineering requirement that every accessory—from the external rain cap to the internal service switch—must fit securely and function reliably within a unified system. Evaluating these components requires a strict assessment of material properties and operational limits.

Selecting Rain Caps for Environmental Protection

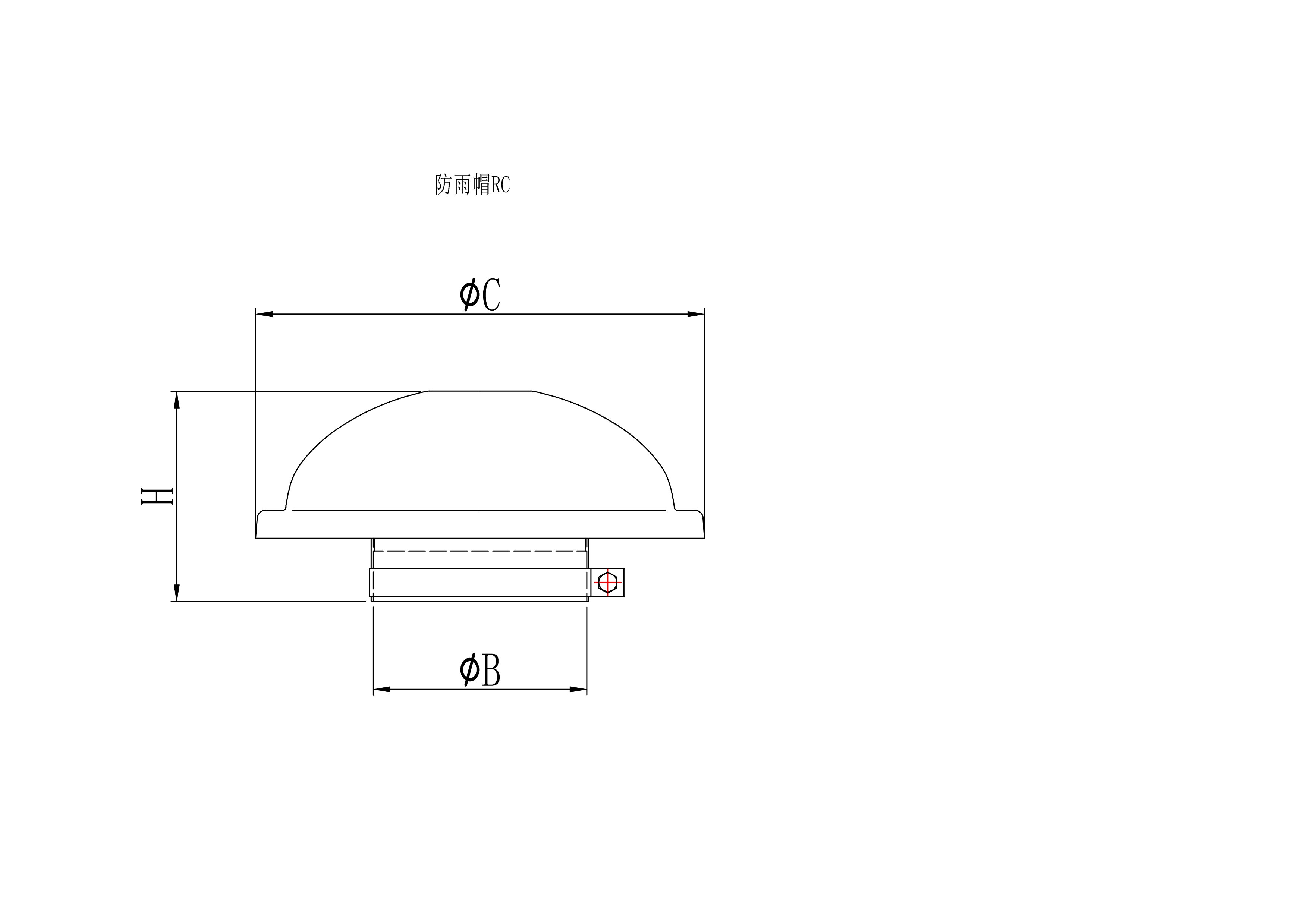

The first line of defense in a secure air filtration system is the external inlet protection. Rain caps are simply fitted on the air inlet to block precipitation, bulk water, and large airborne debris from entering the filter housing. Because these components are exposed directly to the external environment, selecting the correct material is the most critical factor in ensuring a secure, long-lasting fit.

SYKING provides air filter assembly accessories designed to meet different environmental severity levels. When specifying rain caps, evaluators must choose between two primary material categories based on the operational scenario:

• PLA (Plastic) Rain Caps: Plastic materials offer excellent corrosion resistance and reduce the overall weight of the intake assembly. PLA rain caps are highly suited for standard industrial environments, agricultural settings, or stationary equipment where the primary risks are rain and ambient dust rather than severe physical impacts. The lighter weight also reduces vibrational stress on the intake piping, helping to maintain a secure fit over time.
• ME (Metal) Rain Caps: Metal materials are required for high-durability applications. In forestry, mining, or heavy construction, equipment is frequently subjected to physical impacts from falling branches, flying rocks, or severe abrasion. ME rain caps provide the structural rigidity necessary to withstand these forces without cracking or deforming, ensuring the inlet remains protected and the cap remains securely mounted to the intake stack.

Matching the material to the environment prevents the rain cap from failing under operational stress. A cracked or dislodged rain cap immediately compromises the system, allowing moisture to saturate the primary filter media, which drastically reduces its lifespan and efficiency.

Monitoring Filter Health with Service Indicators

While rain caps protect the system from external threats, service indicators are required to monitor the internal health of the filtration system. These accessories measure the degree of contamination within the air filter by tracking the restriction or vacuum created as the filter media loads with dust. Ensuring a secure fit for these monitoring tools involves more than just physical threading; it requires strict adherence to their technical operating limits.

If a service indicator or electrical switch is deployed outside of its rated specifications, the internal components can fail, leading to false readings or a complete loss of monitoring capability. In severe cases, structural failure of the indicator housing due to thermal stress can create a leak path, allowing unfiltered air to bypass the primary element.

Important limitation: To guarantee reliable operation and maintain system integrity, evaluators must verify that the application environment does not exceed the following strict operational boundaries:

• Temperature Limits: Service indicators must operate exclusively within an allowable working temperature range of -30 ℃ to 100 ℃. Deployment in environments exceeding 100 ℃ can degrade the internal seals or housing, while temperatures below -30 ℃ may cause mechanical components to seize or become brittle.
• Electrical Constraints: For systems utilizing active monitoring, the electrical service switch must not exceed a maximum working voltage of 24V and a maximum current of 0.25A. Exceeding these electrical thresholds can cause short circuits, arcing, or permanent failure of the switch mechanism.

By respecting these thermal and electrical limits, operators ensure that the service indicators provide accurate, real-time data regarding filter contamination, allowing for condition-based maintenance rather than relying on inefficient, rigid replacement schedules.

Integration and Fitment Best Practices

Securing assembly accessories to the primary filtration system requires a systematic approach to installation. Proper fitment ensures that rain caps remain attached during high-vibration operations and that service indicators maintain a perfect seal against the filter housing.

Follow these sequential steps to integrate accessories securely:

1. Assess Environmental Prerequisites: Before physical installation, confirm the material selection. Verify that a PLA rain cap is being used for standard environments or an ME rain cap is staged for high-impact zones. Simultaneously, check the ambient and radiant temperatures around the filter housing to ensure they fall within the -30 ℃ to 100 ℃ operating range of the service indicators.
2. Align External Protection with the Inlet: Position the selected rain cap over the primary air inlet pipe. Ensure the cap is seated completely flush against the mounting surface. The cap must be secured tightly enough to prevent rotational movement or rattling under engine vibration, which could eventually wear down the mounting point and loosen the fit.
3. Integrate Monitoring Tools with Primary Filtration Units: When installing service indicators, locate the designated port on the housing of the Radial Seal Air Filter or primary unit. Inspect the port threads and the indicator's sealing mechanism for any debris or manufacturing burrs. Thread the indicator into the port carefully to avoid cross-threading, ensuring the internal seal engages fully to prevent vacuum leaks.
4. Validate Electrical Boundaries: If integrating an electrical service switch, verify the equipment's control circuit specifications before connecting the wiring. Use a multimeter to confirm that the circuit will not deliver more than 24V or exceed the 0.25A maximum current. Secure the wiring harness to prevent tension on the switch terminals during operation.

Executing these steps systematically guarantees that the accessories not only fit securely upon initial installation but also maintain their protective and monitoring functions throughout the operational lifespan of the equipment.

Frequently Asked Questions

What dictates the choice between PLA and ME rain caps?

The choice between PLA (plastic) and ME (metal) rain caps is dictated entirely by the environmental exposure and the risk of physical impact. PLA is ideal for standard applications requiring corrosion resistance and lower weight. ME is necessary for heavy-duty environments, such as mining or forestry, where the rain cap must withstand severe physical strikes without deforming or detaching from the inlet.

How do temperature extremes impact service indicator reliability?

Service indicators are engineered to operate within a specific thermal window of -30 ℃ to 100 ℃. Operating below -30 ℃ can cause internal mechanical components to stiffen or plastic housings to become brittle, risking a loss of seal. Conversely, operating above 100 ℃ can degrade the internal diaphragms or seals, leading to inaccurate contamination readings or physical leaks in the monitoring port.

What are the electrical constraints for integrating a service switch?

Integrating an electrical service switch requires strict adherence to its power ratings to prevent component failure. The system must be designed so that the switch operates at a maximum working voltage of 24V and a maximum current of 0.25A. Surpassing these limits will damage the internal contacts, rendering the contamination monitoring system inoperable.

***

To ensure a secure fit for your specific operational environment, contact SYKING to confirm accessory specifications, material compatibility, and operating limits for your industrial air filtration system.
